TE Connectivity AMP Connectors 4-1123723-5 — Pin Headers

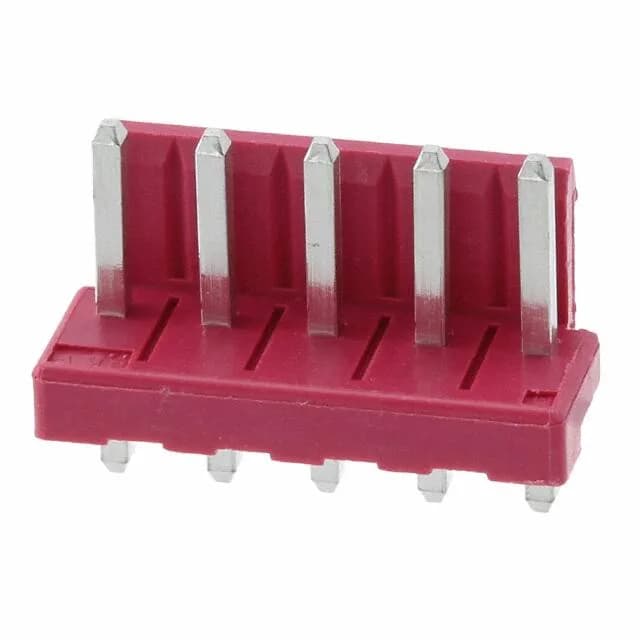

4-1123723-5 TE Connectivity Economy Power Header 5 Pos

MPN4-1123723-5
Active

TE Connectivity AMP Connectors, Economy Power series, single-row male pin header, 0.156" (3.96 mm) pitch, 5 positions, 7.5 A per circuit, tin-plated contacts, through-hole solder, friction lock fastening, shrouded 1-wall, red PBT housing, UL94 V-0, -25°C to 105°C, 250 VAC.

$0.4500Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 4-1123723-5 datasheet (PDF)
RoHSROHS3 Compliant
SeriesEconomy Power
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

4-1123723-5 key specifications
ParameterValue
SeriesEconomy Power
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current rating7.5A
Operating temperature-25°C~105°C
Contact materialBrass
Insulation colorRed
Insulation height0.118\" (3.00mm)
Insulation materialPolybutylene Terephthalate (PBT), Glass Filled

All specifications

4-1123723-5 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose, Industrial, Lighting
Contact shapeSquare
Rows1
Pitch0.156\" (3.96mm)
Positions5
Contact finish - postTin
Contact length - post0.146\" (3.70mm)
Overall contact length0.567\" (14.40mm)
Contact finish - matingTin
Contact length - mating0.303\" (7.70mm)

Product details

Board-to-Wire Header for General Purpose and Lighting

The 4-1123723-5 is a TE Connectivity Economy Power series header — a single-row, 5-position male pin header with a 0.156" (3.96 mm) pitch. The tin finish is suited for moderate-cycle applications — expect several dozen to low hundreds of mating cycles before contact fretting becomes a consideration in a corrosive environment.

Mating Receptacle and Termination

The mating half is a TE Economy Power receptacle housing (e.g., 1-1123723-x series) loaded with crimp terminals for 18-22 AWG wire. The header terminates via through-hole solder — the 0.146" (3.70 mm) post length is compatible with standard 1.6 mm PCBs.

Frequently asked questions

Where can I buy 4-1123723-5?

The 4-1123723-5 is available through our independent distribution channel. It is quoted to order against your BOM quantity — submit an RFQ for current pricing and availability.

Is 4-1123723-5 RoHS compliant?

Yes, the 4-1123723-5 is ROHS3 compliant per the manufacturer's declaration.

What is the mating connector for 4-1123723-5?

The mating connector is a TE Economy Power receptacle housing (e.g., 1-1123723-x series) with crimp terminals. The friction lock on the header mates with the latch on the receptacle.
