TE Connectivity AMP Connectors 4-146483-0
MPN4-146483-0
Active

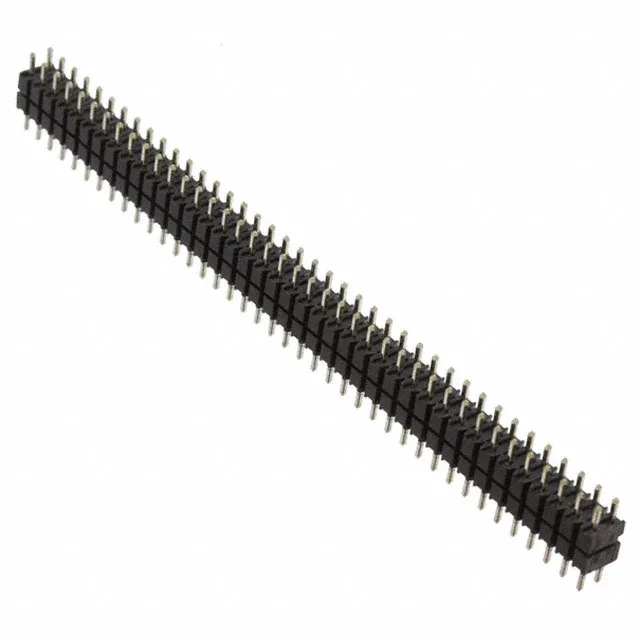

CONN HDR 80POS 0.1 STACK T/H
$18.4Ref. price · indicative, final on quote
RoHSRoHS non-compliant
SeriesAMPMODU Mod II
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Mounting | Through Hole |
| Color | Black |
| Length - stack height | 0.200\" (5.080mm) |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Row spacing | 0.100\" (2.54mm) |
| Termination | Solder |
| Length - tail | 0.110\" (2.800mm) |
| Rows | 2 |
| Positions | 80 |
| Length - overall pin | 0.440\" (11.176mm) |
| Length - post (Mating) | 0.130\" (3.300mm) |
| Contact finish - post (Mating) | Tin-Lead |
| Contact finish thickness - post (Mating) | 100.0µin (2.54µm) |
