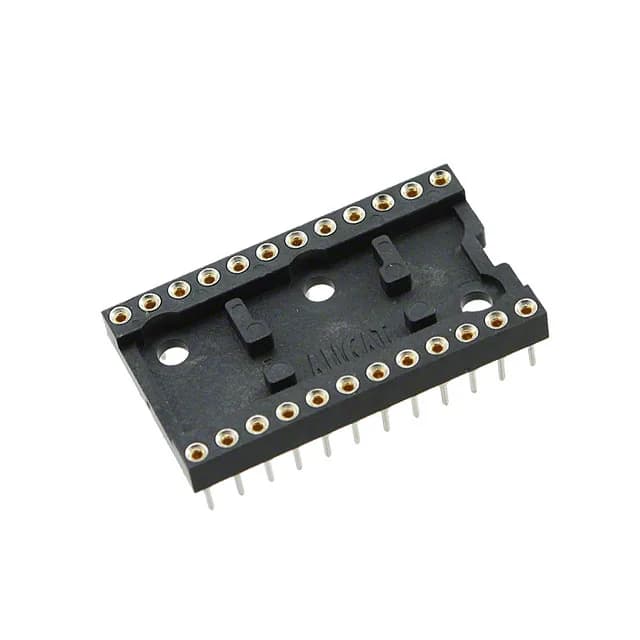

TE Connectivity AMP Series 500 DIP socket, order code 4-1571551-8, 24 positions, 2.54 mm pitch, dual row, 15.24 mm row spacing, gold mating contacts, through-hole solder termination, tube package.
TE 4-1571551-8 DIP Socket, 24 Pos, 2.54mm Pitch, Obsolete
MPN4-1571551-8
Obsolete
TE Connectivity AMP Series 500 DIP socket, order code 4-1571551-8, 24 positions, 2.54 mm pitch, dual row, 15.24 mm row spacing, gold mating contacts, through-hole solder termination, tube package.
$2.6500Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.6\" (15.24mm) Row Spacing |
| Series | 500 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 125°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Nickel |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Closed Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 25.0µin (0.63µm) |
| Contact finish thickness - mating | 25.0µin (0.63µm) |
| Number of positions or pins | 24 (2 x 12) |
