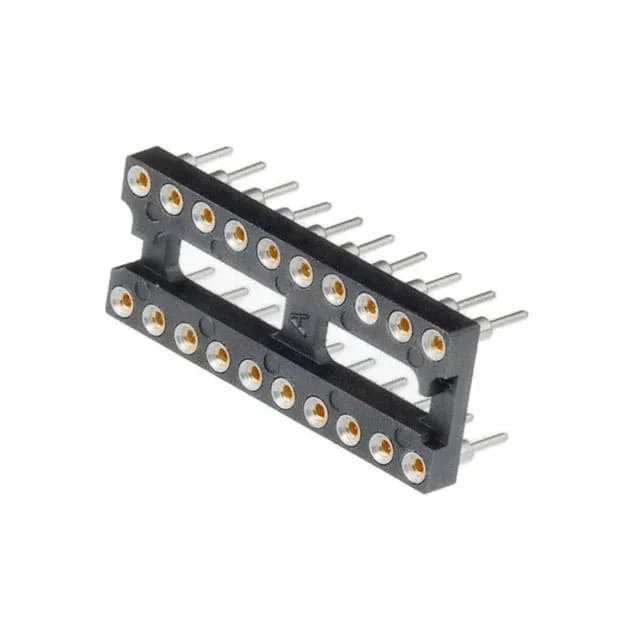

TE Connectivity AMP Connectors 800 series DIP header, order code 4-1571552-6, 20 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole, solder termination.
TE 4-1571552-6 800 Series DIP Header, 20 Pos, Obsolete
MPN4-1571552-6
Obsolete
TE Connectivity AMP Connectors 800 series DIP header, order code 4-1571552-6, 20 positions, dual row, 0.100" (2.54mm) pitch, gold-plated mating contacts, through-hole, solder termination.
$2.4000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Type | DIP, 0.3\" (7.62mm) Row Spacing |
| Series | 800 |
| Mounting | Through Hole |
| Operating temperature | -55°C ~ 105°C |
| Housing material | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester |
| Contact material - post | Copper |
| Contact material - mating | Beryllium Copper |
| Material flammability rating | UL94 V-0 |
| Package | Tube |
| Features | Open Frame |
| Termination | Solder |
| Pitch - post | 0.100\" (2.54mm) |
All specifications
| Parameter | Value |
|---|---|
| Pitch | 0.100\" (2.54mm) |
| Contact resistance | 10mOhm |
| Contact finish - post | Gold |
| Contact finish - mating | Gold |
| Termination post length | 0.125\" (3.18mm) |
| Contact finish thickness - post | 20.0µin (0.51µm) |
| Contact finish thickness - mating | 20.0µin (0.51µm) |
| Number of positions or pins | 20 (2 x 10) |
Product details
Frequently asked questions
What is the closest pin-compatible alternative to the 4-1571552-6?
The functional replacement would require a different package and pinout — a board spin is required.
What compliance documentation does TE provide for the 4-1571552-6?
The housing material is rated UL94 V-0.
