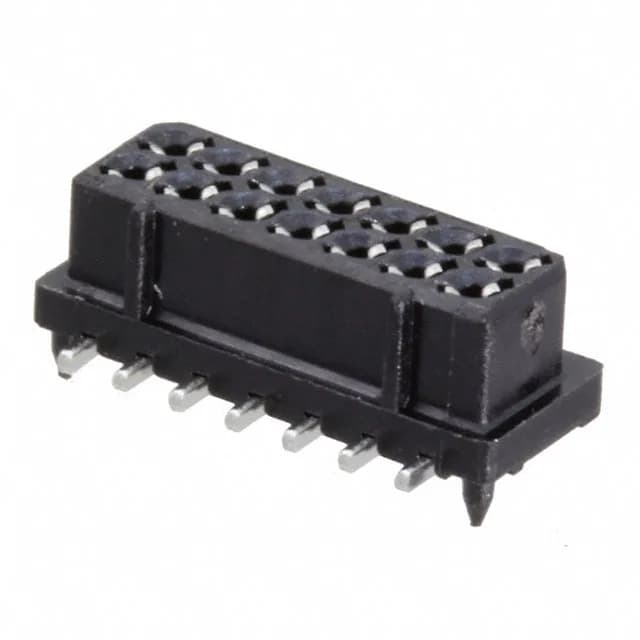

TE Connectivity AMP Connectors Fine Pitch series, 4-174639-4, board-to-board receptacle, 14 positions, 2 rows, 1.25 mm pitch, 0.5 A, tin-plated contacts, SMT solder termination, UL94 V-0 black PPS housing.
| Parameter | Value |
|---|---|
| Series | Fine Pitch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.134\" (3.40mm) |
| Insulation material | Polyphenylene Sulfide (PPS) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Features | Board Guide |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 14 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 4-174639-4 is a 14-position, 2-row receptacle from the Fine Pitch series, designed for board-to-board stacking at a 1.25 mm mating pitch. It terminates via surface-mount solder, making it a pick-and-place candidate for medium-density signal routing.
Tin-to-tin interfaces are cost-effective for moderate mating-cycle duty; expect several hundred cycles before fretting becomes a concern.
Yes, the receptacle includes a board guide feature to aid alignment during board-to-board stacking.
