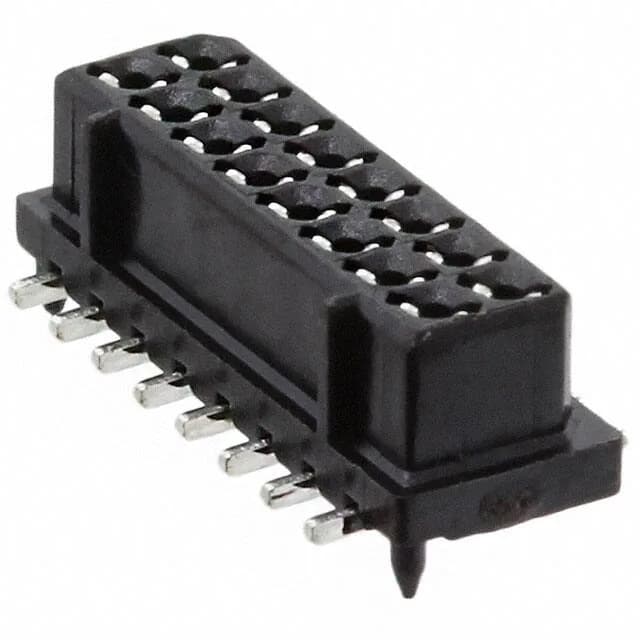

TE Connectivity AMP Connectors Fine Pitch receptacle, order code 4-174639-6, 16 positions, dual row, 1.25 mm pitch, 0.5 A, 50 V, tin-plated mating contacts, surface-mount, solder termination.
| Parameter | Value |
|---|---|
| Series | Fine Pitch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -30°C~105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.134\" (3.40mm) |
| Insulation material | Polyphenylene Sulfide (PPS) |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Bulk |
| Features | Board Guide |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 16 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 4-174639-6: Mating contacts are tin-plated phosphor bronze with 31.5 µin of tin on the mating surface, suited for signal-level duty where repeated mating cycles are infrequent.
The 1.25 mm pitch and matching 1.25 mm row spacing place the 16 positions in a compact footprint that routes between the pads on a standard PCB trace-and-space budget.
The 4-174639-6 is listed as a Board to Board style receptacle in the Fine Pitch series.
