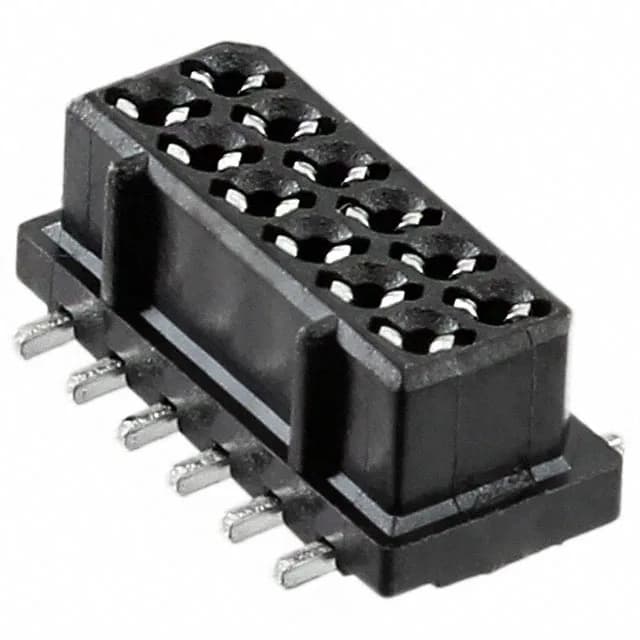

TE Connectivity AMP Connectors Fine Pitch series receptacle, 12 positions, 1.25 mm pitch, tin-plated forked contacts, surface-mount termination, push-pull fastening, UL94 V-0 black housing.
| Parameter | Value |
|---|---|
| Series | Fine Pitch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -30°C ~ 105°C |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Parameter | Value |
|---|---|
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 12 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - mating | 31.5µin (0.80µm) |
The 4-175630-2: This is a 12-position, dual-row receptacle from TE's Fine Pitch series, designed for board-to-board stacking with a 1.25 mm mating pitch and 0.049" row spacing. The 0.5 A per-contact ceiling is the limiting factor; this is not a power interconnect.
The 4-175630-2 is sourced to order through independent distribution. No stock-holding claim is made — each quote reflects the multi-source reach at that moment.
As a board-to-board receptacle, the mating half is a Fine Pitch series pin header with 1.25 mm pitch, 12 positions, dual-row, surface-mount termination.
