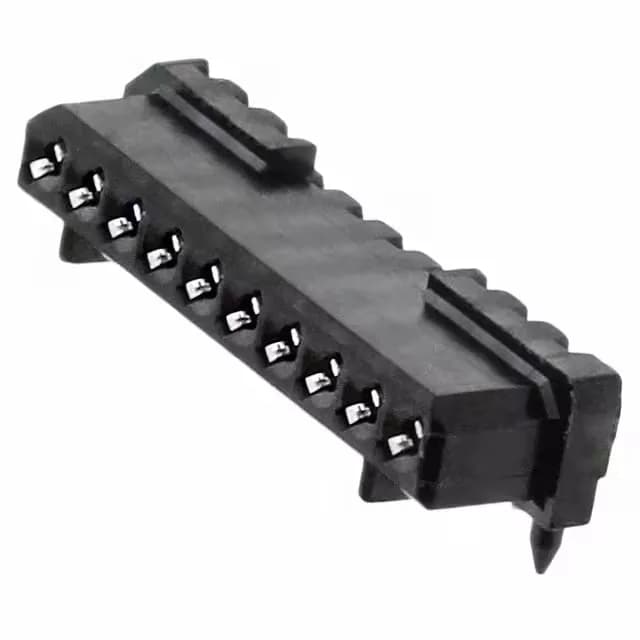

TE Connectivity AMP Connectors Fine Pitch receptacle, order code 4-175637-0, 10 positions, single row, 1.25 mm pitch, 0.5 A, 50 V, tin-plated mating contacts, surface-mount right-angle, solder termination.
| Parameter | Value |
|---|---|
| Series | Fine Pitch |
| Type | Forked |
| Mounting | Surface Mount, Right Angle |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -30°C~105°C |
| Insulation color | Black |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 1 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 4-175637-0: Mating contacts are tin-plated; the single-row, right-angle SMT package with a board guide suits dense PCB layouts where a low-profile interconnect is needed.
A built-in board guide aids alignment during reflow assembly.
RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors.
