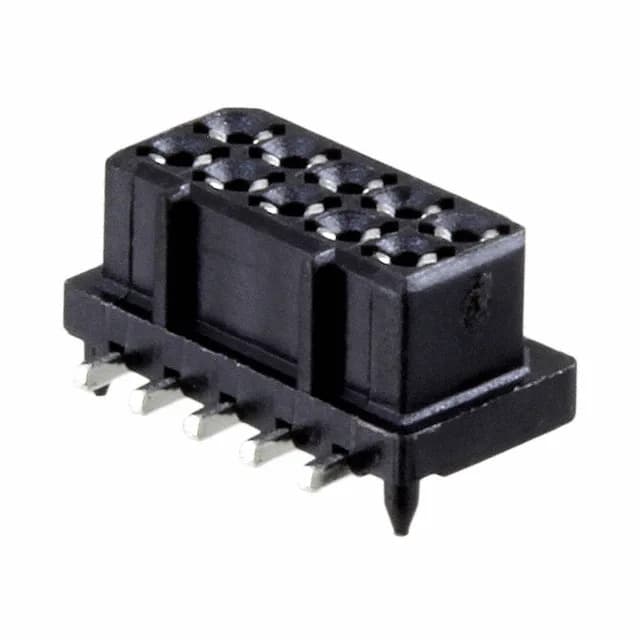

TE Connectivity AMP Connectors Fine Pitch series board-to-board receptacle, 10 positions, 2 rows, 0.049" (1.25 mm) pitch, tin-plated forked contacts, 0.5 A, 50 V, SMD, UL94 V-0 black housing, -30°C to 105°C.
| Parameter | Value |
|---|---|
| Series | Fine Pitch |
| Type | Forked |
| Mounting | Surface Mount |
| Connector type | Receptacle |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -30°C ~ 105°C |
| Insulation color | Black |
| Material flammability rating | UL94 V-0 |
| Style | Board to Board |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Parameter | Value |
|---|---|
| Features | Board Guide |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 10 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
The 4-175638-0 is a 10-position, 2-row board-to-board receptacle from TE's Fine Pitch series, with a 0.049" (1.25 mm) mating pitch that sets the board footprint and trace escape density. The SMD termination and board guide feature help align the receptacle during reflow, reducing tombstoning on dense PCBs.
The 4-175638-0 is a board-to-board receptacle; it mates with a matching pin header from the same Fine Pitch series with 0.049" (1.25 mm) pitch, 10 positions, 2 rows. The exact header part number depends on stack height and termination style — confirm the header's pitch and position count match before ordering.
Yes, 4-175638-0 is ROHS3 compliant, meeting the latest EU RoHS directive requirements for lead, mercury, cadmium, and other restricted substances.
The current rating is 0.5 A per contact. This is a signal-level interconnect — do not use for power distribution. The rating is derated at the upper end of the -30°C to 105°C temperature range.
The mating pitch is 0.049" (1.25 mm), with the same row spacing. This fine pitch enables dense board-to-board routing but requires careful PCB layout for trace escape and via fan-out.
