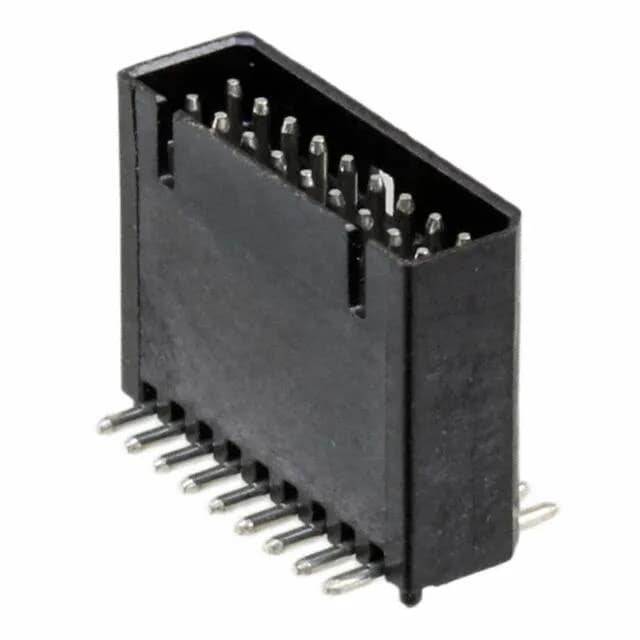

TE Connectivity AMP Connectors Fine Pitch header, order code 4-176756-8, 18 positions, dual row, 1.25 mm pitch, 0.5 A, 50 V, tin-plated mating contacts, surface mount, solder termination, tray.
4-176756-8 TE Connectivity AMP Connectors Header, 18 Pos
MPN4-176756-8
Obsolete
TE Connectivity AMP Connectors Fine Pitch header, order code 4-176756-8, 18 positions, dual row, 1.25 mm pitch, 0.5 A, 50 V, tin-plated mating contacts, surface mount, solder termination, tray.
$0.9100Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Fine Pitch |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Push-Pull |
| Voltage rating | 50V |
| Current rating | 0.5A |
| Operating temperature | -30°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.368\" (9.35mm) |
| Insulation material | Polyphenylene Sulfide (PPS) |
All specifications
| Parameter | Value |
|---|---|
| Mated stacking heights | 10.5mm, 11.3mm, 12.4mm |
| Style | Board to Board |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Circular |
| Rows | 2 |
| Pitch | 0.049\" (1.25mm) |
| Positions | 18 |
| Row spacing - mating | 0.049\" (1.25mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
