1.25mm pitch, 14-position SMT header for board-to-board stacking

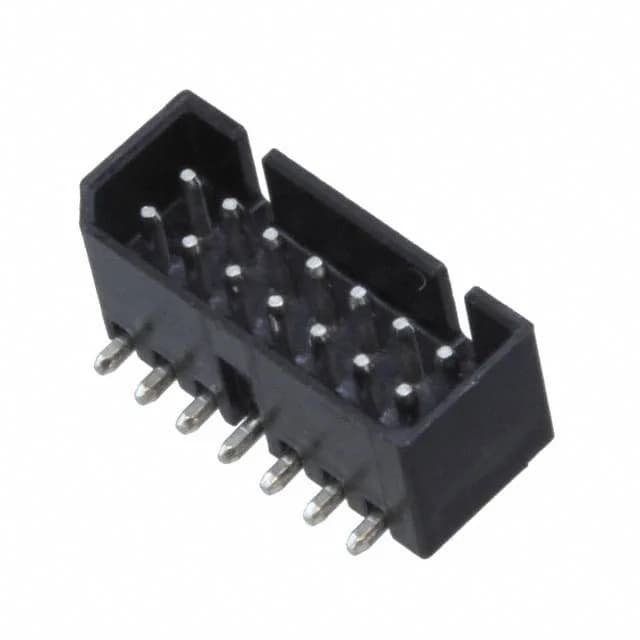

The 4-176891-4 is a 14-position, dual-row header on 1.25mm pitch, surface-mount terminated, with a shrouded 4-wall housing that protects the male pins during handling and mating. Rated 0.5A per contact at 50V, with an operating temperature range of -30°C to 105°C, this connector suits low-current signal interconnects in compact board stacks.
This header mates with a matching 1.25mm pitch receptacle (not included) using a push-pull fastening system; the 4-wall shroud guides alignment and prevents pin damage. The 0.049-inch (1.25mm) row spacing matches the pitch, so the dual-row layout occupies a 1.25mm x 1.25mm grid on the PCB.
