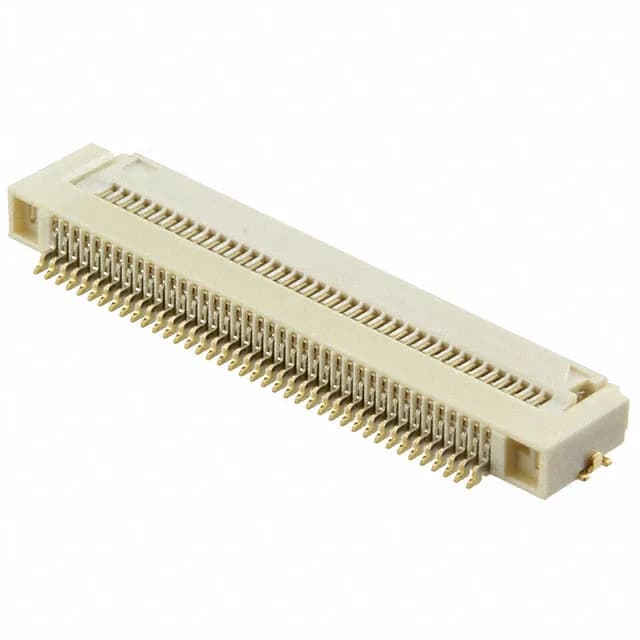

TE Connectivity AMP Connectors 4-1775333-0
MPN4-1775333-0
Obsolete
$1.6000Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Mounting | Surface Mount, Right Angle |
| Cable end type | Straight |
| Flat flex type | FPC |
| Connector (Contact type) | Contacts, Bottom |
| Voltage rating | 250V |
| Current rating | 0.5A |
| Operating temperature | -20°C~85°C |
| Housing color | Natural |
| Actuator color | Natural |
| Contact material | Phosphor Bronze |
| Housing material | Liquid Crystal Polymer (LCP) |
| Actuator material | Liquid Crystal Polymer (LCP) |
All specifications
| Parameter | Value |
|---|---|
| Height above board | 0.081\" (2.05mm) |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.020\" (0.50mm) |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention, Zero Insertion Force (ZIF) |
| Termination | Solder |
| Contact finish | Gold |
| Locking feature | Flip Lock |
| FFC, FCB thickness | 0.30mm |
| Positions | 40 |
| Contact finish thickness | 50.0µin (1.27µm) |
