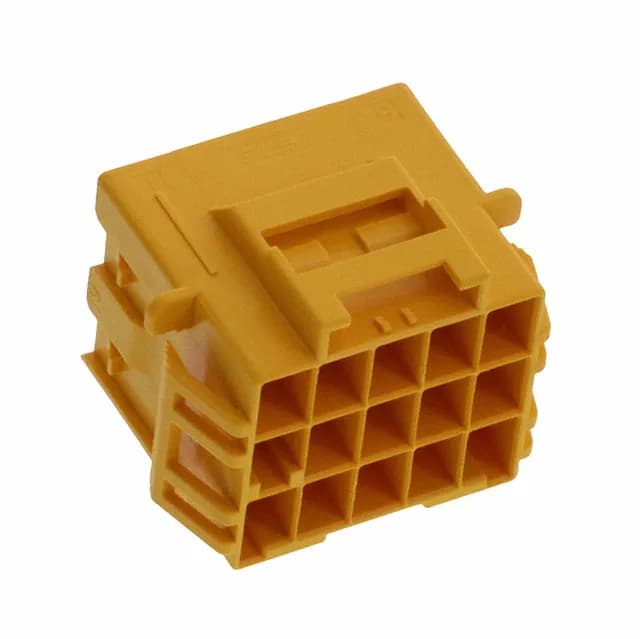

15-Circuit Power Triple Lock Receptacle Housing
It is a wire-to-board or wire-to-wire interconnect housing designed for power distribution in demanding environments — the 6.00mm pitch and 3-row layout give it the creepage distance for higher-voltage circuits without forcing an oversized panel cutout. The housing is panel-mount with snap-in retention and a latch holder for positive locking against vibration. The yellow PBT insulation material provides good chemical resistance and dimensional stability at temperature.
Contacts Sold Separately — Plan Your BOM
Factor the terminal part number and quantity into the BOM line; missing this is a common first-pass error that stalls assembly.
Mounting and Mating
Mounting is panel mount, snap-in — the housing locks into a panel cutout without hardware. The latch holder on the receptacle engages with the matching header's locking ramp for a vibration-resistant mate. The 0.319" (8.10mm) row spacing and 0.236" (6.00mm) pitch define the footprint for the mating header. This receptacle mates with the Power Triple Lock header (same series) — confirm the header's circuit count and orientation match the 15-position layout before specifying.
