TE Connectivity AMP Connectors 4-1971905-6 — Connector Housings

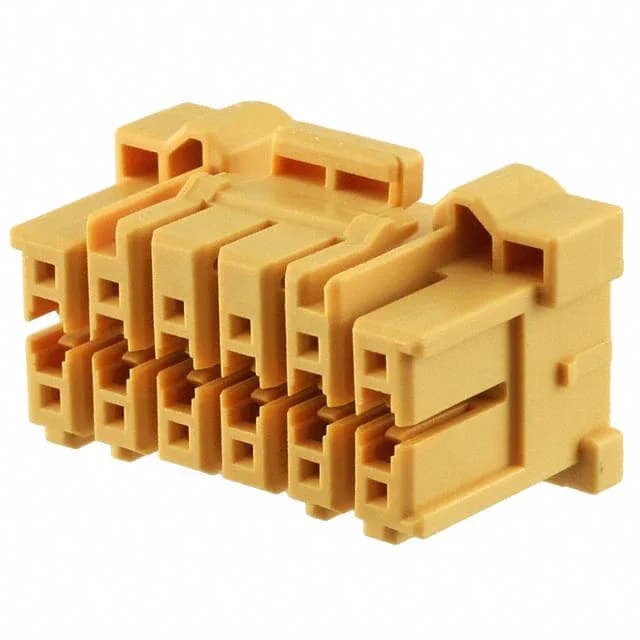

TE Connectivity 4-1971905-6 Grace Inertia GIC Plug Housing

MPN4-1971905-6
Active

TE Connectivity Grace Inertia, GIC series, 4-1971905-6, Plug Housing, 12 Positions, 2 Rows, 3.30mm Pitch, 5.20mm Row Spacing, Latch Lock, Yellow, PA66, Crimp Termination, Free Hanging.

$0.5000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 4-1971905-6 datasheet (PDF)
RoHSROHS3 Compliant
SeriesGrace Inertia, GIC
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

4-1971905-6 specifications
ParameterValue
SeriesGrace Inertia, GIC
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Operating temperature-30°C ~ 105°C
ColorYellow
Insulation materialPolyamide (PA66), Nylon 6/6, Glass Filled
NoteContacts Not Included
Pitch0.130\" (3.30mm)
PackageBulk
Row spacing0.205\" (5.20mm)
Rows2
Contact terminationCrimp
Positions12

Product details

Pitch, Row Spacing, and Footprint Fit

The 12 positions in a 2-row layout give a 6-per-row arrangement, which matches common 12-circuit harness junctions. The free-hanging (in-line) mounting type means this housing is designed for cable-to-cable or cable-to-panel applications, not PCB mounting.

Latch Lock and Field Retention

This is a practical advantage in harness assembly where the connector pair must stay mated under vehicle or machinery vibration without secondary locking clips. The latch is integral to the housing, so no extra hardware is needed.

Frequently asked questions

Where can I buy 4-1971905-6 and how do I get a price?

Submit a request for quote (RFQ) with your target quantity, and availability and current pricing will be confirmed at quote time.

What contacts fit 4-1971905-6?

The 4-1971905-6 is a plug housing that accepts female socket crimp terminals. Contacts are not included with the housing — order the matching Grace Inertia crimp terminal separately. The exact terminal part number depends on wire gauge; consult the TE Connectivity Grace Inertia terminal selection for the correct fit.
