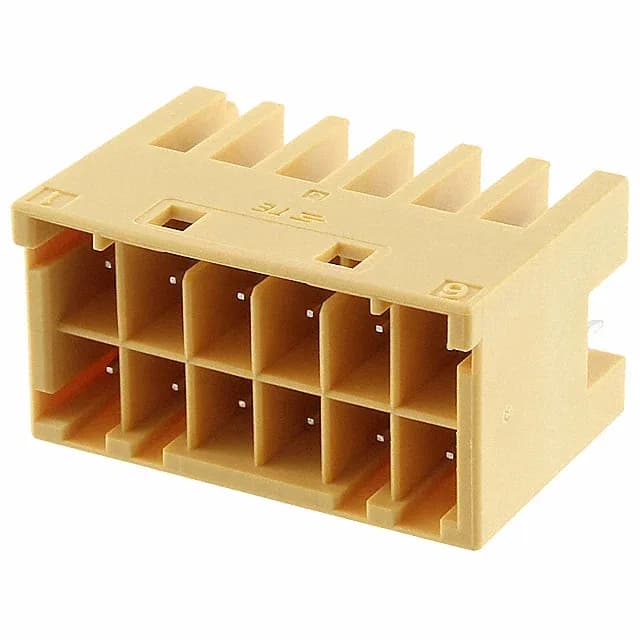

TE Connectivity AMP Connectors Grace Inertia, GIC series, 4-1971906-6, Board to Cable/Wire, 12 Positions, 0.130" (3.30mm) Pitch, Through Hole, Kinked Pin, Solder, Shrouded - 4 Wall, Latch Holder, Yellow, UL94 V-0
| Parameter | Value |
|---|---|
| Series | Grace Inertia, GIC |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -30°C~105°C |
| Contact material | Brass |
| Insulation color | Yellow |
| Insulation height | 0.561\" (14.25mm) |
| Insulation material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Guide |
| Shrouding | Shrouded - 4 Wall |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.130\" (3.30mm) |
| Positions | 12 |
| Row spacing - mating | 0.205\" (5.20mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.118\" (3.00mm) |
| Overall contact length | 0.575\" (14.60mm) |
| Contact finish - mating | Tin |
The 4-1971906-6: The 3.30mm pitch and 5.20mm row spacing set the PCB footprint and determine the mating receptacle. Rated at 250VAC and operating from -30°C to 105°C, this header suits control cabinets, panel wiring, and outdoor telecom enclosures where the temperature stays within that band.
Submit a BOM quantity for a current quote.
The 4-1971906-6 is a male pin header. It mates with a Grace Inertia series receptacle housing that accepts the corresponding crimp terminals.
