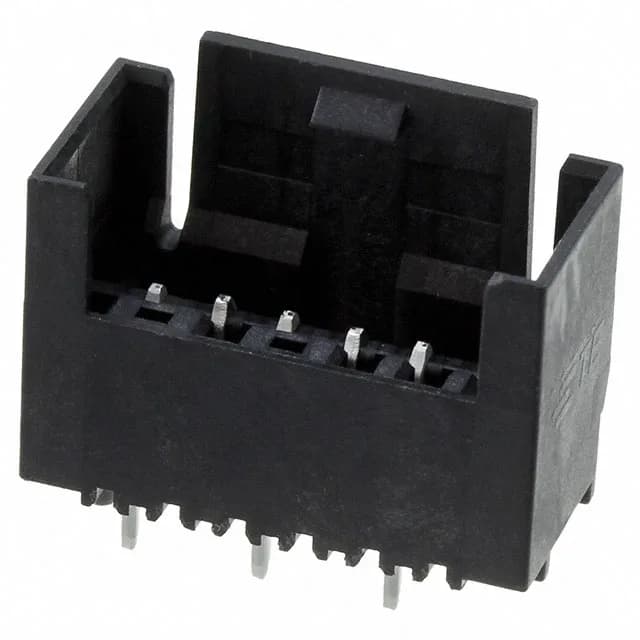

TE Connectivity AMP Connectors header, order code 4-1971994-6, 6 positions, single row, 2.50 mm pitch, shrouded 4-wall, locking ramp, through-hole solder, tin-plated mating contacts, black nylon housing, UL94 V-0.
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.610\" (15.49mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide |
| Parameter | Value |
|---|---|
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.098\" (2.50mm) |
| Positions | 6 |
| Contact finish - post | Tin |
| Contact length - post | 0.114\" (2.90mm) |
| Contact finish - mating | Tin |
The 4-1971994-6 is a 6-position, single-row member of TE's shrouded header line for board-to-cable/wire applications. Rated for through-hole solder termination, the header carries tin-plated mating contacts on a 2.50 mm pitch with a locking ramp and full 4-wall shrouding.
Black nylon (PA) housing rated UL94 V-0, with a 0.610" (15.49 mm) insulation height and copper alloy contacts.
RoHS and REACH compliance information is available in the product drawing and manufacturer documentation.
