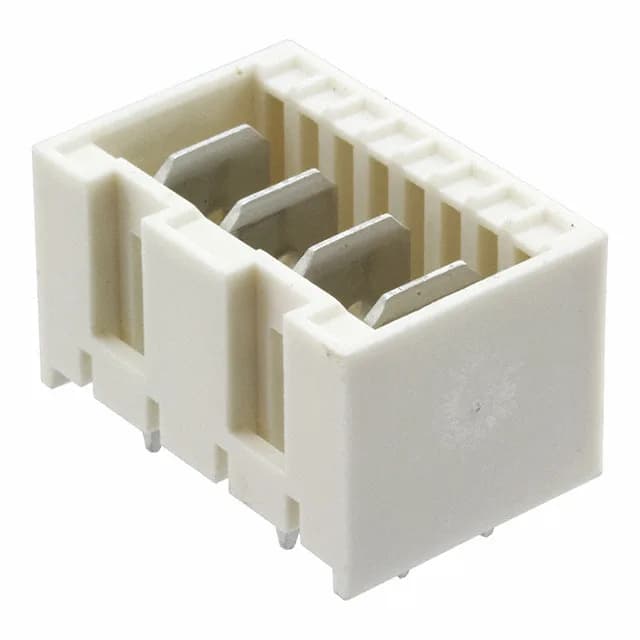

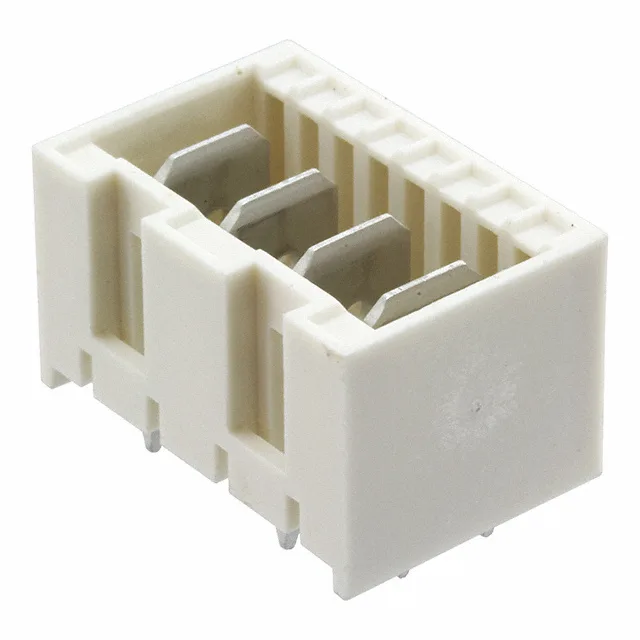

TE Connectivity AMP Connectors header, order code 4-2232045-4, 4 positions, single row, 5.00 mm pitch, 250 VAC, tin-plated mating contacts, through-hole, solder termination.
TE 4-2232045-4 Header, 4 Pos 5.00mm, Through Hole
MPN4-2232045-4
Active
TE Connectivity AMP Connectors header, order code 4-2232045-4, 4 positions, single row, 5.00 mm pitch, 250 VAC, tin-plated mating contacts, through-hole, solder termination.
$0.6546Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Tab |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Latch Holder |
| Voltage rating | 250VAC |
| Operating temperature | -40°C ~ 120°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.504\" (12.80mm) |
| Insulation material | Polyamide (PA), Nylon |
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
All specifications
| Parameter | Value |
|---|---|
| Package | Bulk |
| Features | Board Guide, Glow Wire Compliant |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Rectangular |
| Rows | 1 |
| Pitch | 0.197\" (5.00mm) |
| Positions | 4 |
| Contact finish - post | Tin |
| Contact length - post | 0.138\" (3.50mm) |
| Contact finish - mating | Tin |
Product details
Frequently asked questions
What compliance documentation is available for this header?
RoHS and REACH documentation is provided by TE Connectivity AMP Connectors upon request.
