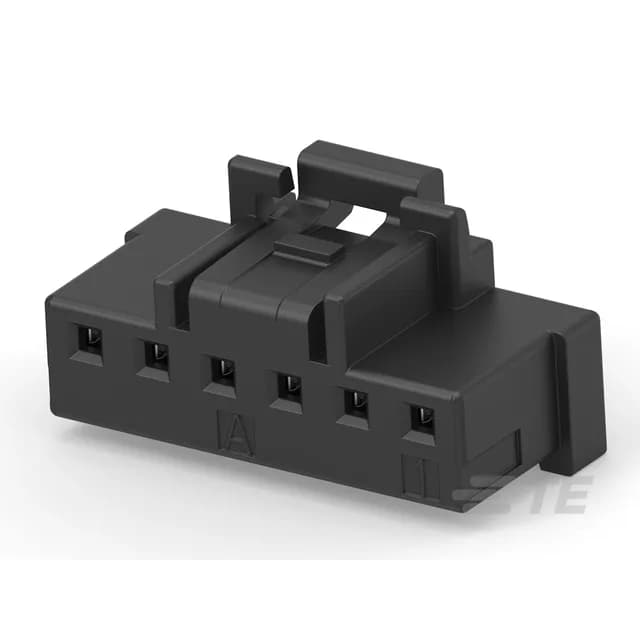

TE Connectivity Grace Inertia 2.0, Plug, 4-2232979-6, 6 Positions, 1 Row, 0.079" (2.00mm) Pitch, Crimp, Free Hanging, Latch Holder, Black, -40°C ~ 105°C.
| Parameter | Value |
|---|---|
| Series | Grace Inertia 2.0 |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line) |
| Connector type | Plug |
| Fastening type | Latch Holder |
| Operating temperature | -40°C ~ 105°C |
| Color | Black |
| Insulation material | Thermoplastic |
| Pitch | 0.079\" (2.00mm) |
| Package | Bag |
| Rows | 1 |
| Contact termination | Crimp |
| Positions | 6 |
Crimp termination on the female socket contacts means you terminate the wires before assembly, then insert into the housing.
The 2.00 mm pitch is tighter than the 2.50 mm of the 1-1376477-6 sibling, which means the board-side footprint is narrower — useful when routing density is tight. Single-row layout with 6 positions keeps the wire exit in one plane, simplifying the cable bend radius inside the enclosure.
4-2232979-6 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — confirmed at quote time.
This plug mates with the matching Grace Inertia 2.0 receptacle header on the board side. Confirm the position count and pitch match the BOM's mating half before ordering.
