8-Position Sealed Receptacle Housing for Harsh Environments

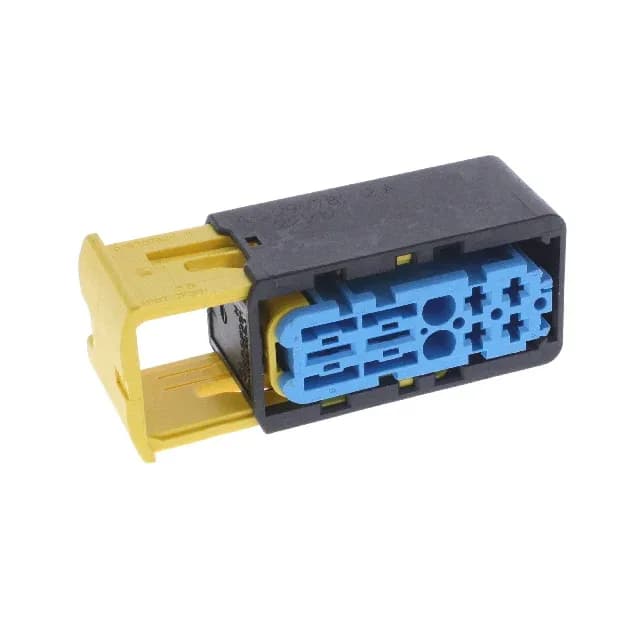

The TE Connectivity 4-2299782-2 is an 8-position, 2-row receptacle housing from the Heavy Duty Sealed Connector Series, MCP 2.8/6.3. It is a free-hanging (in-line) female socket housing rated IP67 and IP69K, meaning it withstands temporary submersion and high-pressure, high-temperature washdown — suited for engine compartments, agricultural equipment, and food-processing machinery where hose-down cleaning is routine. The housing is molded in blue glass-filled PBT and uses a slide-on fastening system for tool-less mating. Contacts are ordered separately (crimp terminals, not included).
What Contacts Are Needed?
This housing accepts MCP 2.8/6.3 female socket crimp terminals. The terminals are ordered separately.
Mating Half and Cross-Reference
The mating half is a TE MCP 2.8/6.3 header (male pin housing) with the same 8-position, 2-row layout and slide-on latch. The closest peer by function is the 6-position 1-2069882-6 (same series, natural color, 5.08 mm pitch), but the 8-position count and blue housing are unique to the 4-2299782-2. For a 30-position alternative with a locking ramp, see the 1-2333134-5.
