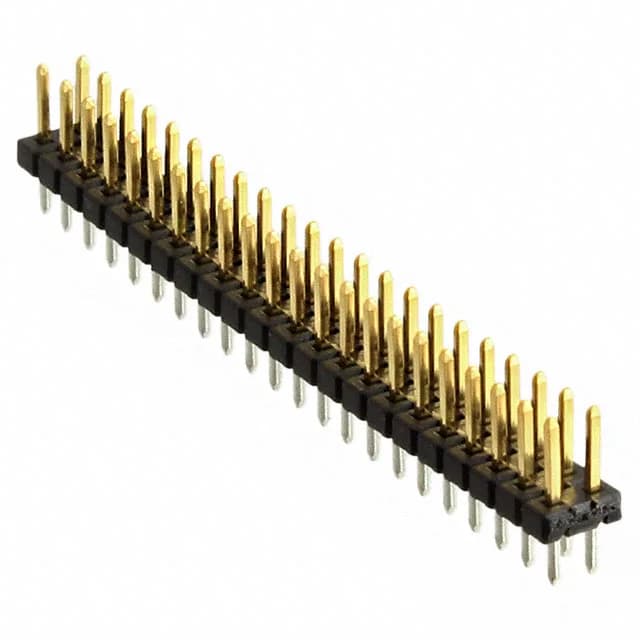

TE Connectivity AMP Connectors AMPMODU header, breakaway, order code 4-5176264-5, 44 positions, dual row, 2.00 mm pitch, 200 VAC, gold-plated mating contacts, through-hole, solder termination.
| Parameter | Value |
|---|---|
| Series | AMPMODU |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header, Breakaway |
| Fastening type | Push-Pull |
| Voltage rating | 200VAC |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.059\" (1.50mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Board or Cable |
| Package | Tray |
| Shrouding | Unshrouded |
| Termination | Solder |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.079\" (2.00mm) |
| Positions | 44 |
| Row spacing - mating | 0.079\" (2.00mm) |
| Contact finish - post | Tin |
| Contact length - post | 0.102\" (2.60mm) |
| Overall contact length | 0.319\" (8.10mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.157\" (4.00mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 4-5176264-5: The through-hole termination uses tin-plated posts 0.102" (2.60 mm) long.
The breakaway design lets the installer snap the header to any even circuit count up to 44 on site, using the same board layout.
The AMPMODU 2 mm breakaway series shares the same pitch and footprint across all position counts. For a different circuit count, any even-numbered member of the 5176264 base series fits the same board layout — the breakaway snaps to length.
RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors for this part number.
