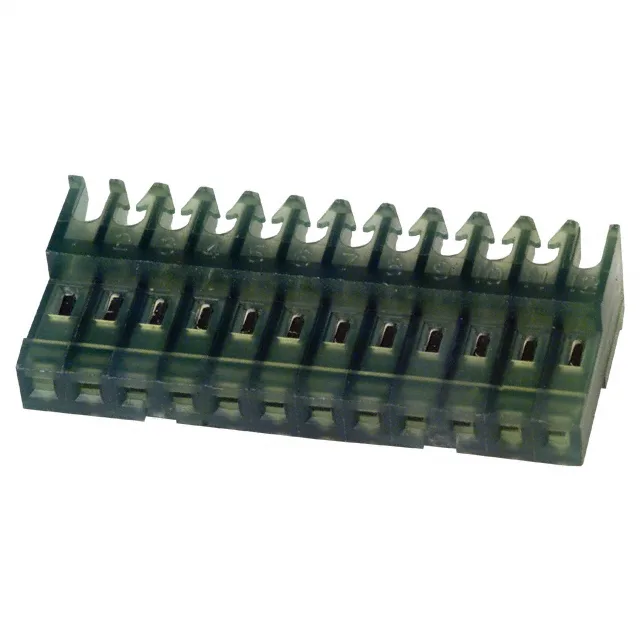

4-640623-2 — TE Connectivity AMP Connectors product photo

TE MTA-100 4-640623-2 Receptacle, 12 Pos, 0.100" Pitch

MPN4-640623-2
Obsolete

TE Connectivity MTA-100 receptacle, 4-640623-2, 12 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, tin 80.0µin contacts, free-hanging right-angle, locking ramp, green.

$1.0500Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

4-640623-2 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge28 AWG
Cable terminationIDC
ColorGreen
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Contact finishTin
Rows1
Positions12
Contact finish thickness80.0µin (2.03µm)

Product details

The 4-640623-2 is officially obsolete. No last-time-buy date or successor part number is on record from TE Connectivity. For an existing BOM line, this means new builds will need a form-fit-function replacement — likely another MTA-100 receptacle with the same 12 positions and 0.100" pitch, though the color (green) and locking ramp may differ on the substitute.

This is an IDC (insulation displacement) connector — no wire stripping or crimping needed. It accepts both discrete wires and ribbon cable, so a harness shop can use the same connector for point-to-point wiring or multi-conductor ribbon runs. The feed-through feature means the IDC slot passes the wire through the housing, allowing daisy-chain termination along a continuous cable.

It is not a secondary latch or TPA; the ramp is molded into the housing and engages audibly on full mate. For applications that see repeated disconnect cycles, the tin plating (80.0µin) is adequate for a few dozen mates but will wear faster than gold — this is a set-and-forget connector for production harnesses, not a field-service disconnect point.

Frequently asked questions

Where can I buy 4-640623-2 available via RFQ confirmation?

The 4-640623-2 is obsolete and not stocked in standard distribution. Submit a request for the quantity you need and we will check the open market.

What is a suitable replacement for 4-640623-2?

No official TE Connectivity successor is listed. A form-fit-function replacement would be another MTA-100 receptacle with 12 positions, 0.100" pitch, IDC termination for 28 AWG, and a locking ramp. The color may differ from green. We can help identify a cross-reference when you submit an RFQ with your application details.
