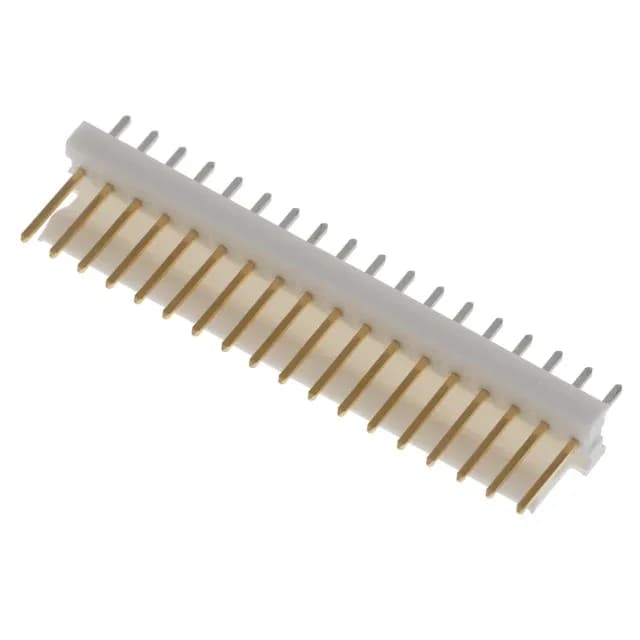

TE Connectivity AMP Connectors MTA-100 series header, 18 positions, 0.100" (2.54 mm) pitch, single-row, through-hole, male pin, gold-plated mating contacts, friction lock, UL94 V-0 natural thermoplastic.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.305\" (7.75mm) |
| Insulation material | Thermoplastic |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 18 |
| Contact finish - post | Tin |
| Contact length - post | 0.140\" (3.56mm) |
| Overall contact length | 0.535\" (13.59mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
For a typical 22 AWG wire in the MTA-100 system, expect around 5 A per contact, but always confirm against the specific crimp terminal and ambient temperature.
Mates with MTA-100 receptacle housings (crimp or IDC type) that accept 18 circuits in a single row. Termination is through-hole solder. The contact length - post is 0.140" (3.56 mm), suitable for standard 1.6 mm PCBs.
This part is sourced to order through our independent distribution network. Submit an RFQ with your target quantity and we will confirm availability and current pricing.
It mates with MTA-100 single-row receptacle housings (crimp or IDC type) that accept 18 positions. The friction lock on the header engages with the receptacle's locking ramp.
The mating pitch is 0.100" (2.54 mm), standard for the MTA-100 series.
