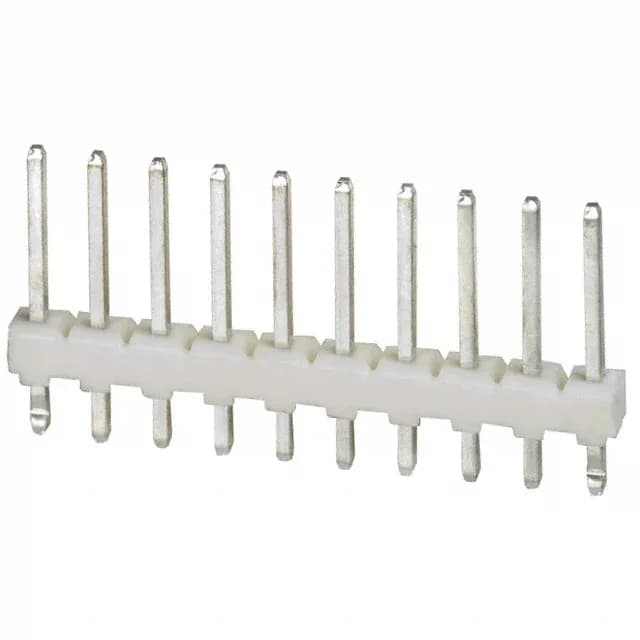

TE Connectivity AMP Connectors MTA-100 series, 4-644456-0: unshrouded through-hole header, 10 circuits, single row, 0.100" (2.54 mm) pitch, tin-plated square pins, UL94 V-0 natural thermoplastic housing.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Overall contact length | 0.505\" (12.83mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.295\" (7.49mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 4-644456-0: The 10-position single-row layout keeps the board-edge routing simple and the z-height low.
For a 20 AWG wire in a typical MTA-100 receptacle, the practical current limit is around 5 A per circuit at 30 °C ambient. Derate above 85 °C ambient per the series derating curve.
It mates with MTA-100 series IDC receptacles or crimp-socket housings, same 0.100" pitch, 10 positions. The unshrouded header has no keying — the mating half must be aligned manually.
