Board-to-wire header with friction lock
The 3.96 mm pitch gives it a wider contact spacing than fine-pitch headers, making it suitable for power and signal distribution in industrial and general-purpose applications.

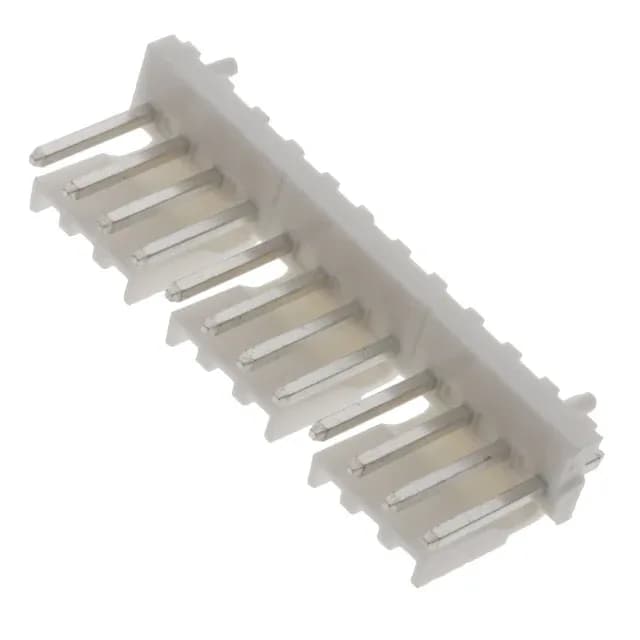

4-644615-2 TE Connectivity MTA-156 Header 12 Pos 3.96mm
MPN4-644615-2
Active
TE Connectivity AMP Connectors MTA-156 series, 4-644615-2, Board to Cable/Wire header, 12 positions, single row, 3.96 mm pitch, shrouded - 1 wall, through hole, solder termination, friction lock, tin mating and post finish, 600VAC, UL94 V-0.
$1.4800Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-156
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.545\" (13.84mm) |
| Insulation material | Thermoplastic, Glass Filled |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Features | Board Guide, Keying Slot |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Overall contact length | 0.700\" (17.78mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.450\" (11.43mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
Product details
Frequently asked questions
What is the mating connector for 4-644615-2?
This header mates with a TE MTA-156 receptacle housing (e.g., 3-644615-2 or similar) and the corresponding crimp socket terminals. The friction lock on the header engages with the latch on the receptacle housing for a secure connection.
Does 4-644615-2 have a friction lock?
Yes, the fastening type is friction lock, which provides a positive latching mechanism to prevent accidental unmating under vibration or cable strain.
