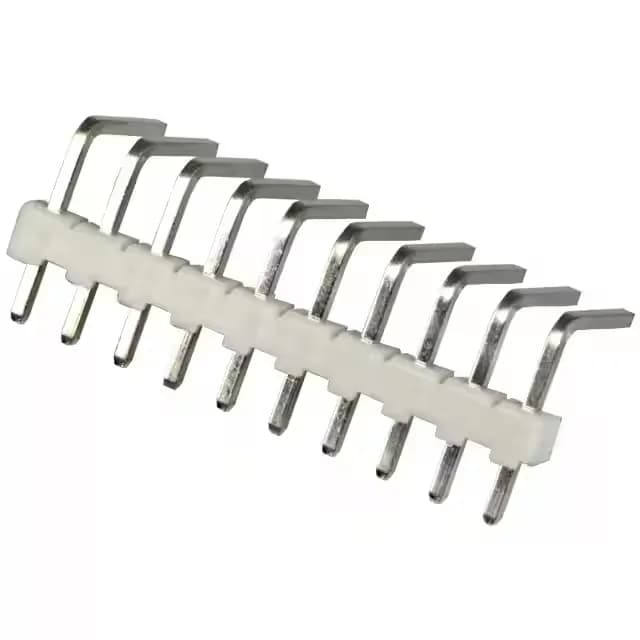

TE Connectivity MTA-100 header, order code 4-644694-0, 10 positions, single row, 0.100" (2.54 mm) pitch, 250 VAC, tin-plated mating contacts, through-hole right-angle, kinked pin solder termination.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.100\" (2.54mm) |
| Insulation material | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Parameter | Value |
|---|---|
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Kinked Pin, Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.110\" (2.79mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.260\" (6.60mm) |
| Contact finish thickness - post | 150.0µin (3.81µm) |
| Contact finish thickness - mating | 150.0µin (3.81µm) |
The 4-644694-0: Rated 250 VAC, UL94 V-0 thermoplastic housing, operating range -55°C to 105°C.
Right-angle through-hole mounting with kinked pins provides solder retention during wave soldering. The unshrouded design allows direct access to the pins for mating with MTA-100 IDC or crimp receptacles.
For a 10-position unshrouded header, the 4-644694-0 is the standard offering; no direct pin-compatible alternative within the same series is listed.
RoHS and REACH compliance documentation is typically provided by TE Connectivity for this series.
