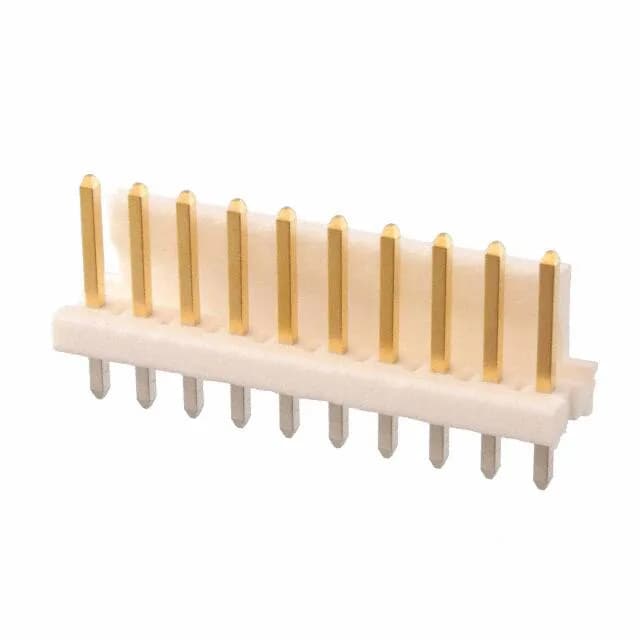

TE Connectivity AMP Connectors MTA-156 series header, 4-644759-0, 10 positions, 3.96mm pitch, single row, shrouded with friction lock, through-hole solder termination, gold-plated mating contacts.
| Parameter | Value |
|---|---|
| Series | MTA-156 |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 600VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C~105°C |
| Contact material | Copper Alloy |
| Insulation color | Natural |
| Insulation height | 0.425\" (10.80mm) |
| Insulation material | Thermoplastic, Glass Filled |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose, Industrial |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.156\" (3.96mm) |
| Positions | 10 |
| Contact finish - post | Tin |
| Contact length - post | 0.175\" (4.45mm) |
| Overall contact length | 0.700\" (17.78mm) |
| Contact finish - mating | Gold |
| Contact length - mating | 0.400\" (10.16mm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 4-644759-0: This MTA-156 header from TE Connectivity is a single-row, 10-position, through-hole connector with a 3.96mm pitch — the footprint matches the standard 0.156-inch centerline used across the MTA-156 family.
The 3.96mm pitch and single-row layout are consistent across the series — confirm the housing part number and terminal wire gauge range before ordering.
This header mates with MTA-156 receptacle housings from the same series. The mating half uses crimp terminals and accepts wire gauges that determine the current rating — confirm the specific housing and terminal part numbers for your harness.
