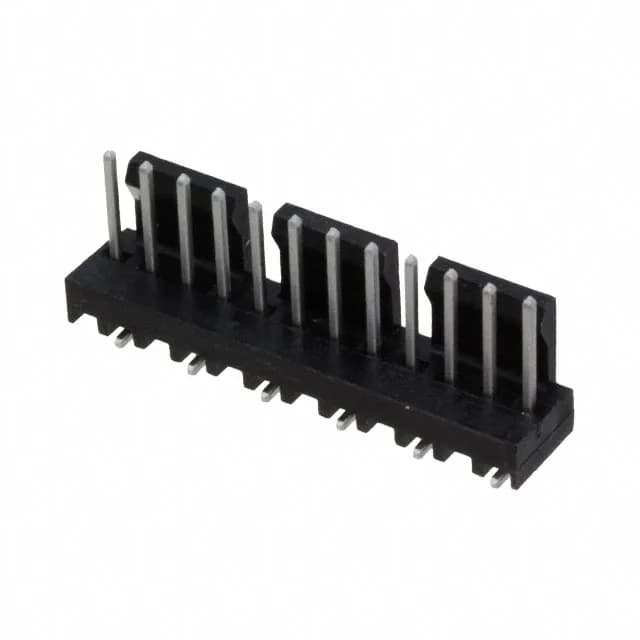

TE Connectivity AMP Connectors MTA-100 header, 4-647166-2, 12 positions, 0.100" (2.54 mm) pitch, single row, shrouded 1 wall, SMD solder termination, friction lock, tin-plated contacts, UL94 V-0 black polyamide housing.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Friction Lock |
| Voltage rating | 250VAC |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -55°C ~ 105°C |
| Contact material | Copper Alloy |
| Insulation color | Black |
| Insulation height | 0.347\" (8.81mm) |
| Insulation material | Polyamide (PA46), Nylon 4/6 |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Bulk |
| Shrouding | Shrouded - 1 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 12 |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact length - mating | 0.290\" (7.37mm) |
The single-wall shroud guides the receptacle during mating but leaves the contact tips exposed—confirm the mating half's keying before assembly.
This header mates with MTA-100 series IDC receptacles or crimp-style housings that accept 0.100" pitch contacts. Termination is SMD solder—the 0.100" pitch allows hand-soldering or reflow with standard profiles.
The pitch is 0.100" (2.54 mm), standard for the MTA-100 series. This sets the board footprint and the spacing for the mating receptacle contacts.
It mates with MTA-100 series receptacles (IDC or crimp style) that have a 0.100" pitch and a friction-lock ramp. The specific mating part number depends on wire gauge and termination type—confirm the receptacle's position count and keying.
