TE Connectivity AMP Connectors 4-647168-0 — Pin Headers

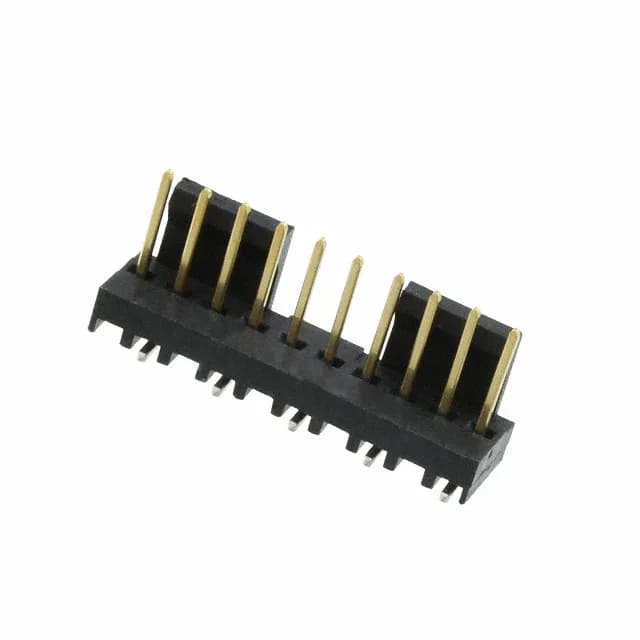

4-647168-0 TE Connectivity MTA-100 Header, 10 Pos

MPN4-647168-0
Active

TE Connectivity AMP Connectors MTA-100 header, 4-647168-0, 10 positions, 0.100" (2.54mm) pitch, single row, SMD, gold mating contacts, friction lock, UL94 V-0.

$4.8000Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 4-647168-0 datasheet (PDF)
RoHSROHS3 Compliant
SeriesMTA-100
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

4-647168-0 key specifications
ParameterValue
SeriesMTA-100
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeFriction Lock
Voltage rating250VAC
Current ratingVaries by Wire Gauge
Operating temperature-55°C~105°C
Contact materialCopper Alloy
Insulation colorBlack
Insulation height0.347\" (8.81mm)
Insulation materialPolyamide (PA46), Nylon 4/6

All specifications

4-647168-0 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageBulk
ShroudingShrouded - 1 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows1
Pitch0.100\" (2.54mm)
Positions10
Contact finish - postTin
Contact finish - matingGold
Contact length - mating0.290\" (7.37mm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

Board Layout Fit: Pitch, Positions, and Footprint

The 4-647168-0: Surface-mount solder tails: the SMD termination keeps the component on the same side as the header body, which simplifies the reflow profile and frees the opposite side for passives.

Tin-plated solder posts: the tin finish on the termination side matches standard lead-free solder processes and provides a reliable intermetallic bond.

Locking and Environmental Ratings

Friction lock on the shroud — the mating receptacle clicks into the single-wall shroud and resists vibration-induced disconnect without a secondary latch.

ROHS3 compliant: the part meets the current EU RoHS exemption rules.

Frequently asked questions

What is the mating connector for 4-647168-0?

Mates with MTA-100 receptacle housings and crimp terminals — the 0.100" pitch and friction lock are common across the series. Confirm the circuit count and wire gauge match before committing.

Does 4-647168-0 have a friction lock?

Yes — the single-wall shroud includes a friction lock that engages with the mating receptacle.

How can I order 4-647168-0 or check availability?

Availability and current pricing confirmed at quote time — submit an RFQ for this part number.
