IEC 320 C14 Filtered Power Inlet — 10 A, Panel Snap-In

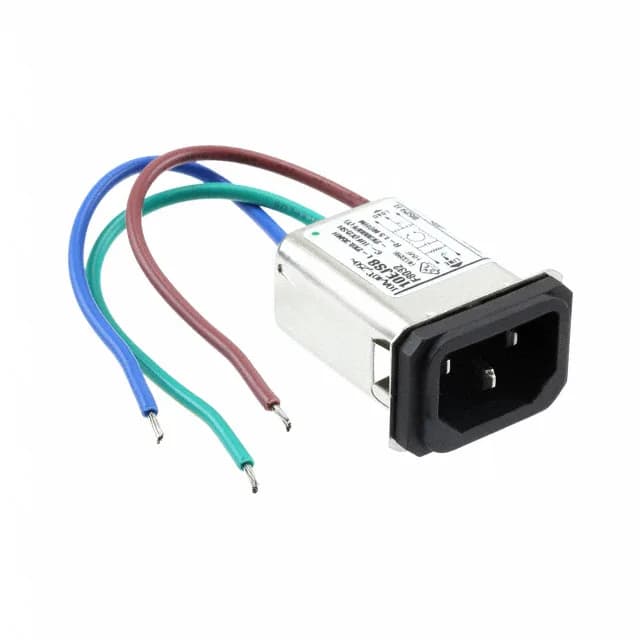

The TE Connectivity Corcom EJS 4-6609006-0 is a filtered IEC 320 C14 power inlet designed for commercial equipment requiring conducted EMI suppression at the mains entry. This 3-position receptacle accepts standard C13 line cords and integrates a commercial-grade EMI/RFI filter rated for 10 A continuous at 120/250 VAC. The housing snaps into a rectangular panel cutout 30.48 mm x 22.86 mm, accommodating panel thicknesses from 0.031" to 0.068" (0.79 mm to 1.73 mm). Termination is via pre-attached wire leads, eliminating the need for a PCB footprint or additional connectors at the inlet.
Panel Fit and Mounting
The snap-in mounting requires a rectangular cutout 30.48 mm x 22.86 mm, with the panel thickness range of 0.031" to 0.068" (0.79 mm to 1.73 mm) ensuring the retention clips engage properly. Thinner panels risk a loose fit; thicker panels may prevent full snap-in. The wire leads exit the rear of the housing, so plan for clearance behind the panel for the lead dress and any filter components.
Filter and Electrical Ratings
Both the appliance inlet and the filter are rated for 10 A at 120/250 VAC, so the filter does not derate the inlet current — the full 10 A is available through the filtered path. The commercial-grade filter (EMI/RFI) targets typical noise suppression needs in ITE, industrial controls, and test equipment. No integral fuse holder is provided; an external fuse must be added in the line circuit if overcurrent protection is required.
Agency Approvals and Compliance
The 4-6609006-0 carries CSA, UL, and VDE approvals, covering North American and European regulatory acceptance for mains-connected equipment. This simplifies certification for the end product — no separate component-level qualification is needed for these jurisdictions.
