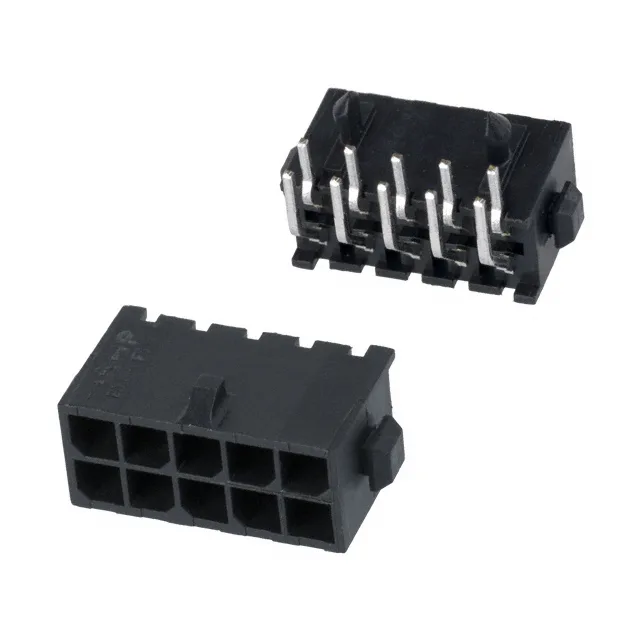

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 10 circuits, 3.00mm pitch, right-angle through-hole, shrouded 4-wall, locking ramp, tin-plated contacts, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
This is the board-side header for the Micro MATE-N-LOK wire-to-board system — it accepts the male pin terminals that crimp onto 20-24 AWG wire, and the mating receptacle housing (with its own locking ramp) completes the connection.
Sourced to order against the BOM quantity.
Within the same series, the 10-position right-angle header 4-794618-0 has no direct pin-compatible alternative from TE listed — the pitch, circuit count, and orientation are fixed. For a different circuit count, see the 6-position (4-794617-0) or 14-position (4-794619-0) variants in the same right-angle, board-lock configuration.
Yes, it is ROHS3 compliant.
