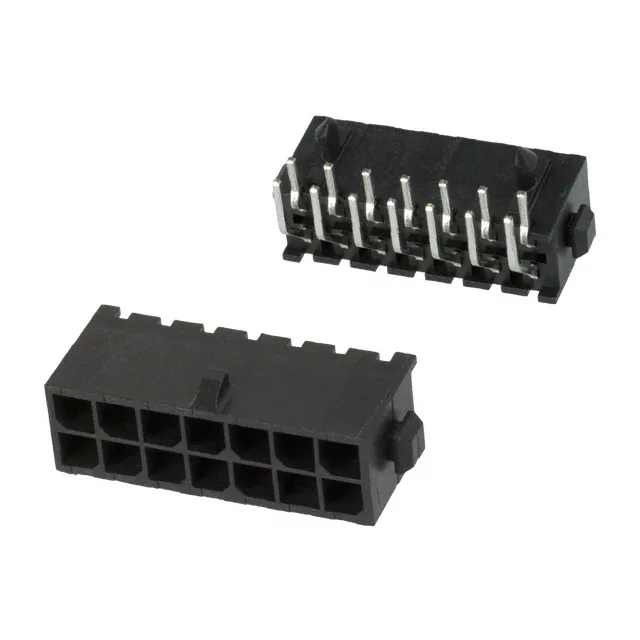

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 14 positions, 3.00mm pitch, right-angle through-hole, shrouded 4-wall, locking ramp, board lock, tin-plated male pins, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 14 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
The 4-794618-4: 14 circuits in a dual-row, 3.00 mm pitch layout — the footprint matches the Micro MATE-N-LOK receptacle housing. Shrouded 4-wall header with a locking ramp: the ramp clicks into the receptacle latch for vibration resistance.
Tin-plated mating surface, 100.0 µinch thick — suited for moderate cycle counts in a dry indoor environment.
This header mates with Micro MATE-N-LOK receptacle housings that accept crimp terminals.
Yes, listed as ROHS3 compliant.
