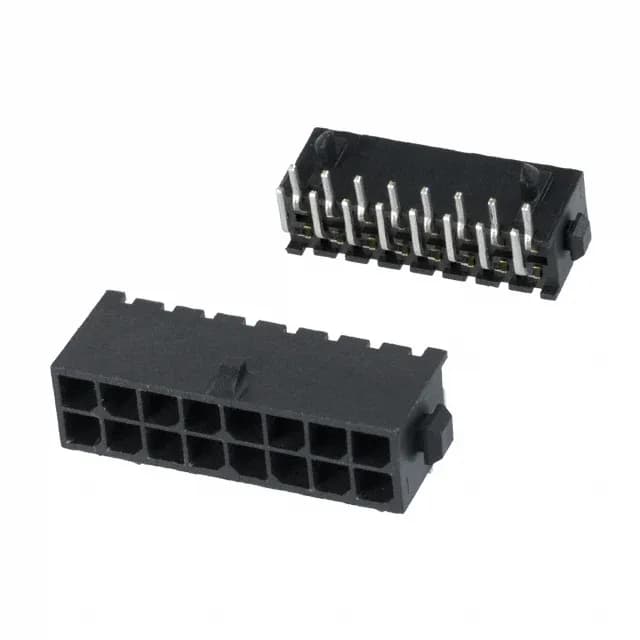

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 4-794619-6, 16 circuits, 3.00 mm pitch, right-angle through-hole, shrouded 4-wall with locking ramp, gold-plated mating contacts, board lock, UL94 V-0.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Through Hole, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tray |
| Features | Board Lock |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 16 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 15.0µin (0.38µm) |
The 4-794619-6: This is a through-hole, right-angle header. The insulation height is 0.290" (7.37 mm) — check the z-height clearance above the board before layout. The header mates with Micro MATE-N-LOK receptacle housings that accept the matching crimp terminals.
This header mates with Micro MATE-N-LOK receptacle housings that accept the matching crimp terminals. The receptacle housing uses a latch that engages the locking ramp on this header. Confirm the circuit count and row configuration of the receptacle to match the 16-position, 2-row layout.
Yes, the part is RoHS compliant per the manufacturer's listing.
