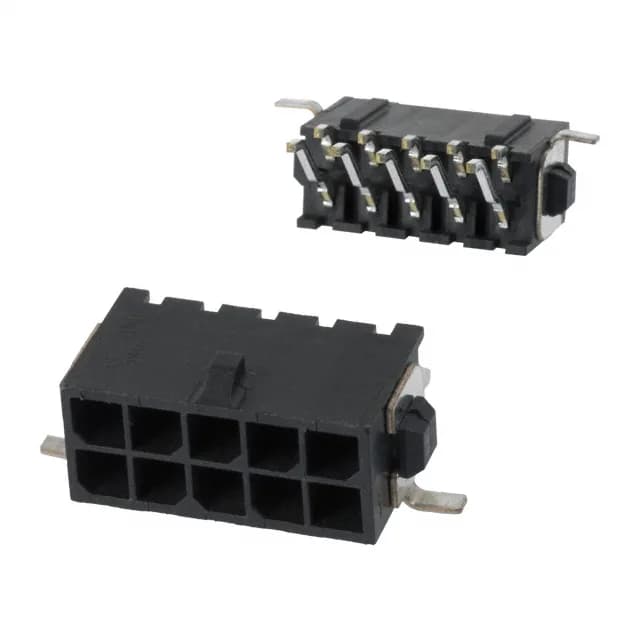

TE Connectivity AMP Connectors Micro MATE-N-LOK header, order code 4-794629-0, 10 positions, dual row, 3.00 mm pitch, 250 V, gold-plated mating contacts, surface-mount right-angle, solder termination, shrouded - 4 wall.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount, Right Angle |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.290\" (7.37mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 4-794629-0 is the 10-circuit member of TE's Micro MATE-N-LOK header line, a shrouded 4-wall board-to-wire header. Gold-plated mating contacts rated 250 V, dual-row 3.00 mm pitch, surface-mount right-angle with solder termination and solder retention features.
RoHS and REACH compliance documentation is provided by TE Connectivity AMP Connectors for this part.
