TE Connectivity AMP Connectors 4-794632-2 — Pin Headers

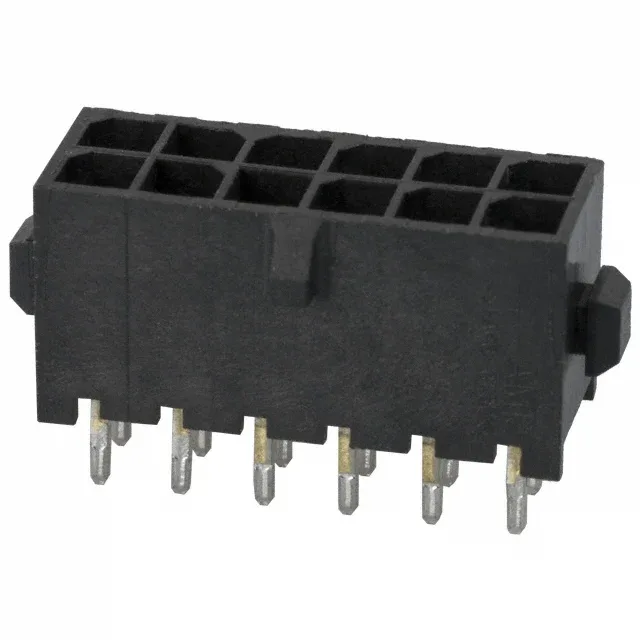

4-794632-2 TE Connectivity Micro MATE-N-LOK Header 12 Pos

MPN4-794632-2
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 4-794632-2, 12 positions, 2 rows, 3.00mm pitch, through-hole, shrouded 4-wall, locking ramp, gold mating contacts, press-fit/solder termination, UL94 V-0.

$3.3300Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

4-794632-2 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingThrough Hole
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C ~ 105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.364\" (9.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

4-794632-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTray
ShroudingShrouded - 4 Wall
TerminationPress-Fit, Solder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions12
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact length - post0.125\" (3.18mm)
Contact finish - matingGold
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating30.0µin (0.76µm)

Product details

The 4-794632-2: This is a 12-position, dual-row header on 3.00 mm pitch — the same pitch as the Micro MATE-N-LOK receptacle family, so the board footprint and cable-side connector are matched.

The post finish is tin (100 µinch), which solders reliably into the plated through-hole.

Termination and mounting options

The header accepts both press-fit and solder termination — press-fit is a solderless option for backplane assembly where rework and high-reliability are priorities. The through-hole post length is 0.125" (3.18 mm), suitable for standard PCB thicknesses.

Frequently asked questions

Is 4-794632-2 compatible with Micro MATE-N-LOK receptacles?

Yes, this header is designed to mate with Micro MATE-N-LOK receptacle housings. The 3.00 mm pitch, dual-row layout, and locking ramp are standard across the series.

What is the current rating of 4-794632-2?

The current rating varies by wire gauge — the contact itself is rated for the full series capability, but the practical limit depends on the wire size and ambient temperature.
