Surface-mount assembly with solder retention
Current, voltage, and thermal limits
Tin-plated mating contacts (100.0 µin thickness) are suited for moderate-cycle applications; the same 100.0 µin tin is on the solder posts.

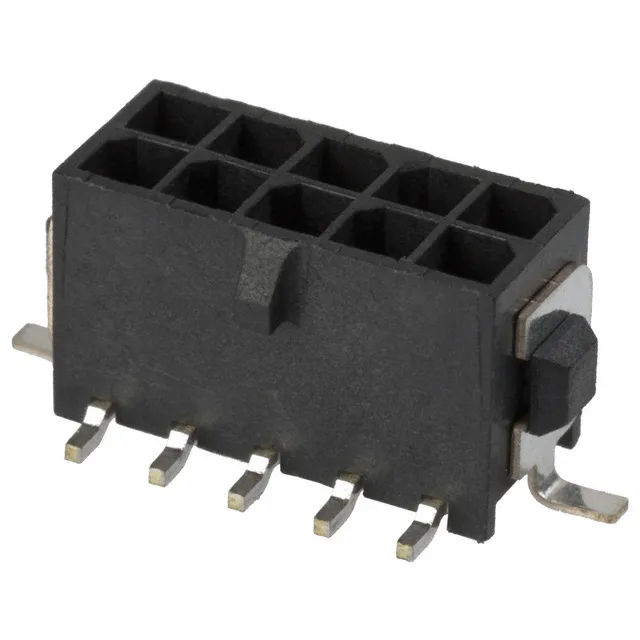

4-794636-0 TE Connectivity Micro MATE-N-LOK Header, 10 Pos
MPN4-794636-0
Active
TE Connectivity AMP Connectors Micro MATE-N-LOK header, 10 positions, 3.00 mm pitch, surface-mount, shrouded 4-wall, locking ramp, tin-plated contacts, UL94 V-0.
$2.5758Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesMicro MATE-N-LOK
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C ~ 105°C |
| Contact material | Brass |
| Insulation color | Black |
| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
All specifications
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Tin |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
Product details
Frequently asked questions
Where can I buy 4-794636-0?
4-794636-0 is sourced through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time.
What is the pitch and number of positions of 4-794636-0?
10 positions in two rows, with a 3.00 mm mating pitch and 3.00 mm row spacing.
Is 4-794636-0 surface mount?
Yes, the header is surface-mount (SMT) with solder termination and a solder retention feature.
