TE Connectivity AMP Connectors 4-794636-2 — Pin Headers

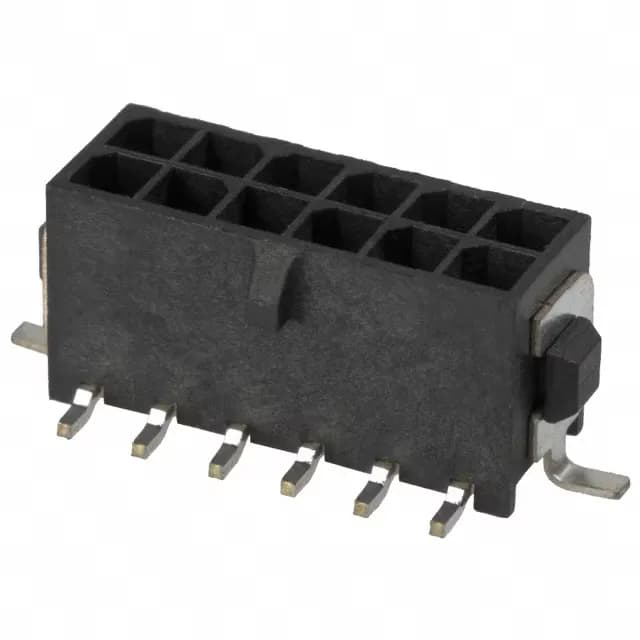

4-794636-2 TE Connectivity Micro MATE-N-LOK Header SMT 12

MPN4-794636-2
Active

TE Connectivity AMP Connectors Micro MATE-N-LOK header, 4-794636-2, SMT, 12 positions, 2 rows, 3.00 mm pitch, shrouded 4-wall, locking ramp, tin contacts, UL94 V-0, -40°C~105°C.

$4.0300Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 4-794636-2 datasheet (PDF)
RoHSRoHS Compliant
SeriesMicro MATE-N-LOK
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

4-794636-2 key specifications
ParameterValue
SeriesMicro MATE-N-LOK
TypeMale Pin
MountingSurface Mount
Connector typeHeader
Fastening typeLocking Ramp
Voltage rating250V
Current ratingVaries by Wire Gauge
Operating temperature-40°C~105°C
Contact materialBrass
Insulation colorBlack
Insulation height0.364\" (9.25mm)
Insulation materialPolyamide (PA), Nylon

All specifications

4-794636-2 additional specifications
ParameterValue
Material flammability ratingUL94 V-0
StyleBoard to Cable/Wire
PackageTape & Reel (TR); Cut Tape (CT)
FeaturesSolder Retention
ShroudingShrouded - 4 Wall
TerminationSolder
ApplicationsGeneral Purpose
Contact shapeSquare
Rows2
Pitch0.118\" (3.00mm)
Positions12
Row spacing - mating0.118\" (3.00mm)
Contact finish - postTin
Contact finish - matingTin
Contact finish thickness - post100.0µin (2.54µm)
Contact finish thickness - mating100.0µin (2.54µm)

Product details

12-Position SMT Header for Micro MATE-N-LOK

The 4-794636-2 is a 12-position, dual-row, 3.00 mm pitch header from TE's Micro MATE-N-LOK series.

SMT Assembly and Locking Ramp

In a vibration-prone environment — say a panel with a fan or a machine tool cabinet — the ramp keeps the pair mated without relying on the solder joints alone.

Tin Contact Finish and Current Rating

Tin is a cost-effective finish for moderate mating-cycle duty (typically 25–50 cycles) in clean, dry, indoor environments. The thick 100 µinch layer provides a robust wear surface for the expected service life.

Frequently asked questions

Where can I buy 4-794636-2 and what is the lead time?

Lead time depends on the lot size and supply position at the time of quote — no stock-holding claim is made.

Is 4-794636-2 compatible with Micro MATE-N-LOK receptacles?

Yes — the 4-794636-2 is a Micro MATE-N-LOK header designed to mate with Micro MATE-N-LOK receptacle housings.

What is the difference between 4-794636-2 and 4-794636-1?

The base product number 794636 covers both variants. The suffix -2 vs -1 typically indicates a packaging or plating option — the exact difference is documented in the product drawing. Both share the same 12-position, 3.00 mm pitch, SMT header footprint.
