TE Connectivity AMP Connectors Micro MATE-N-LOK header, 4-794638-0, 10 positions, 2-row, 3.00mm pitch, SMD, shrouded, locking ramp, gold mating contacts, UL94 V-0, -40°C~105°C.
| Parameter | Value |
|---|---|
| Series | Micro MATE-N-LOK |
| Type | Male Pin |
| Mounting | Surface Mount |
| Connector type | Header |
| Fastening type | Locking Ramp |
| Voltage rating | 250V |
| Current rating | Varies by Wire Gauge |
| Operating temperature | -40°C~105°C |
| Contact material | Brass |
| Insulation color | Black |

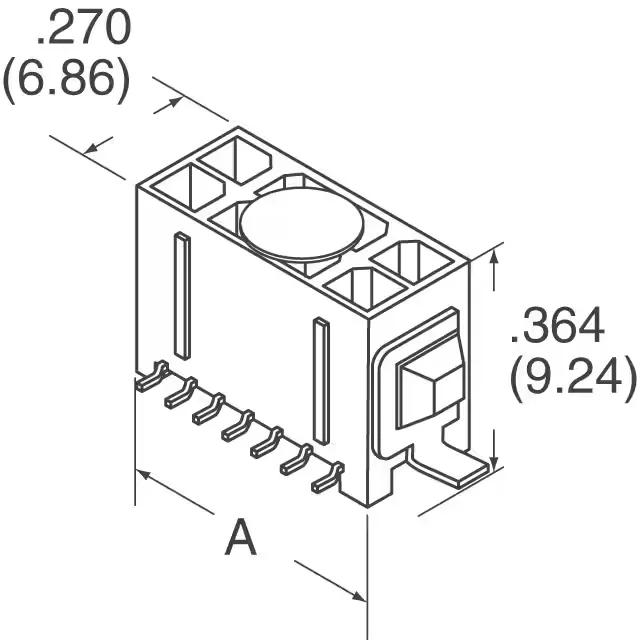

| Insulation height | 0.364\" (9.25mm) |
| Insulation material | Polyamide (PA), Nylon |
| Parameter | Value |
|---|---|
| Material flammability rating | UL94 V-0 |
| Style | Board to Cable/Wire |
| Package | Tape & Reel (TR); Cut Tape (CT) |
| Features | Solder Retention |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
| Applications | General Purpose |
| Contact shape | Square |
| Rows | 2 |
| Pitch | 0.118\" (3.00mm) |
| Positions | 10 |
| Row spacing - mating | 0.118\" (3.00mm) |
| Contact finish - post | Tin |
| Contact finish - mating | Gold |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 30.0µin (0.76µm) |
The 4-794638-0: This is a 10-position, 2-row shrouded header on 3.00mm pitch — the footprint is a 2×5 grid with 0.118" row spacing. The 4-wall shroud and locking ramp mean it mates only with the matching Micro MATE-N-LOK receptacle housing; the latch clicks positively and resists vibration-induced disconnect.
ROHS3 compliant.
4-794638-0 is available through our independent distribution network. Submit an RFQ for current pricing and lead time — availability is confirmed at quote time, not listed as live stock.
This header mates with a Micro MATE-N-LOK receptacle housing (e.g., 3-794617-0 or similar 10-position version). The locking ramp and 4-wall shroud ensure a positive, vibration-resistant connection. Confirm the housing part number against your wire gauge and terminal selection.
