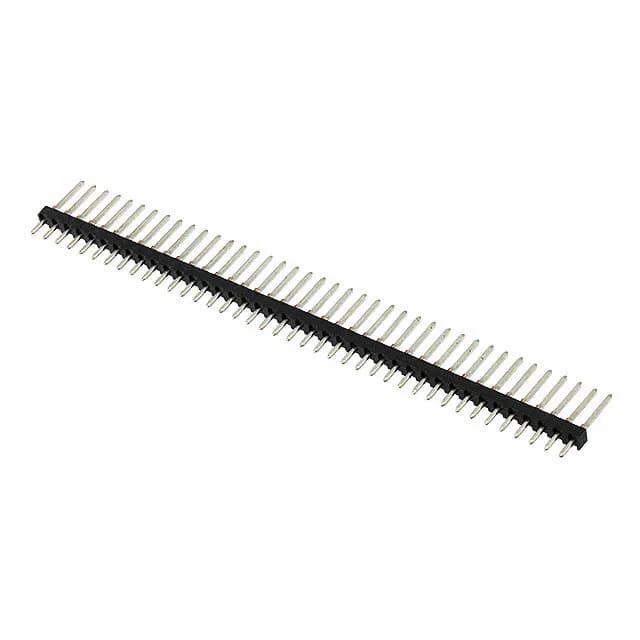

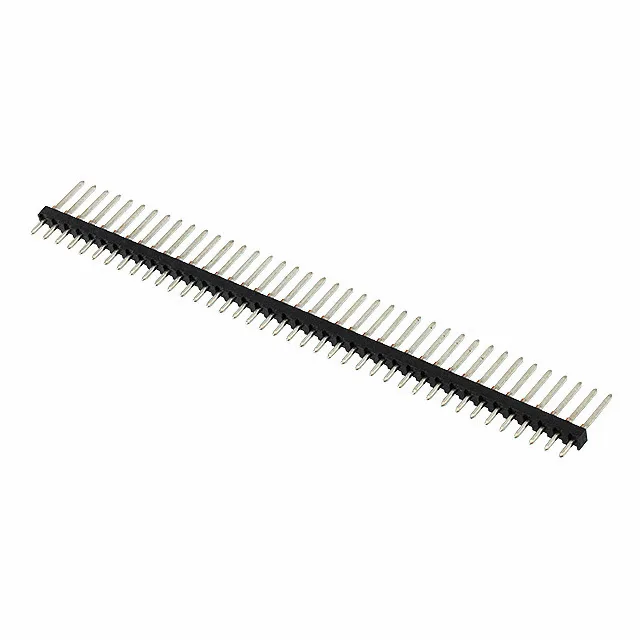

Through-hole unshrouded header, 40 positions
The 4-87348-0 is the 40-position member of TE's AMPMODU Mod II header line, configured as a single-row unshrouded male pin header with push-pull fastening.
TE 4-87348-0 Header, 40 Pos, 0.100" Pitch, AMPMODU Mod II
MPN4-87348-0
Active
TE Connectivity AMP Connectors AMPMODU Mod II header, order code 4-87348-0, 40 positions, single row, 0.100" (2.54 mm) pitch, tin-plated mating contacts, through-hole, solder termination, unshrouded, push-pull fastening.
$5.6184Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | AMPMODU Mod II |
| Type | Male Pin |
| Mounting | Through Hole |
| Connector type | Header |
| Fastening type | Push-Pull |
| Contact material | Phosphor Bronze |
| Insulation color | Black |
| Insulation height | 0.090\" (2.29mm) |
| Style | Board to Board or Cable |
| Package | Bulk |
| Shrouding | Unshrouded |
| Termination | Solder |
All specifications
| Parameter | Value |
|---|---|
| Contact shape | Square |
| Rows | 1 |
| Pitch | 0.100\" (2.54mm) |
| Positions | 40 |
| Contact finish - post | Tin |
| Contact length - post | 0.125\" (3.18mm) |
| Contact finish - mating | Tin |
| Contact length - mating | 0.318\" (8.08mm) |
| Contact finish thickness - post | 100.0µin (2.54µm) |
| Contact finish thickness - mating | 100.0µin (2.54µm) |
