TE Connectivity AMPMODU, Open Top Grip Shunt, 2 positions (1 x 2), 0.100" (2.54 mm) pitch, tin-plated contacts, 3 A, UL94 V-0, black thermoplastic housing, bulk pack.
| Parameter | Value |
|---|---|
| Type | Open Top, Grip |
| Series | AMPMODU |
| Current rating | 3A |
| Color | Black |
| Height | 0.429\" (10.90mm) |
| Housing material | Thermoplastic, Glass Filled |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.100\" (2.54mm) |
| Gender | Female Sockets |
| Package | Bulk |
| Contact finish | Tin |
| Number of positions or pins | 2 (1 x 2) |

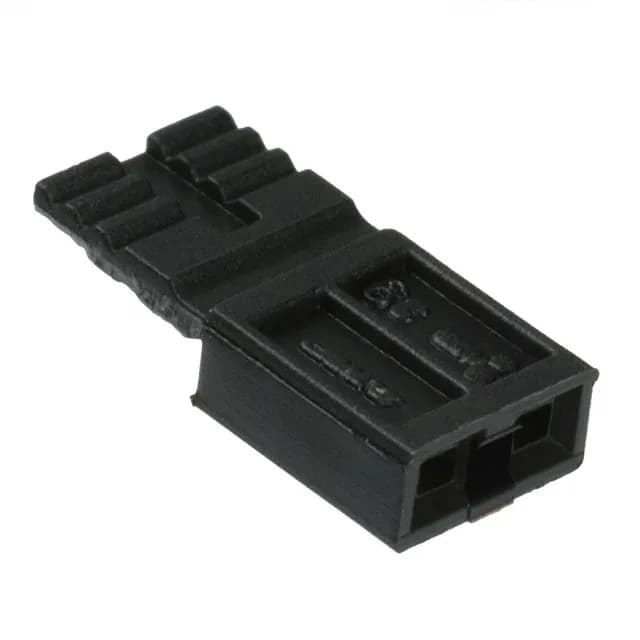

The 4-881545-2 is a 2-position (1 x 2) open-top shunt from TE's AMPMODU series. The 'Open Top, Grip' design means the top of the housing is open so you can probe the contact with a meter lead or grab the shunt with a puller handle.
For a shunt that bridges two header pins once and stays for the life of the board, that is not a concern.
The 4-881545-2 is sourced to order through independent distribution. Submit an RFQ for current pricing and availability — no stock-holding claim is made here.
The pitch is 0.100" (2.54 mm), standard AMPMODU grid spacing.
