TE Connectivity AMP Connectors 406372-6 — Modular / RJ Connectors

TE 406372-6 SL 110Connect RJ45 Jack, Cat5e, Obsolete

MPN406372-6
Obsolete

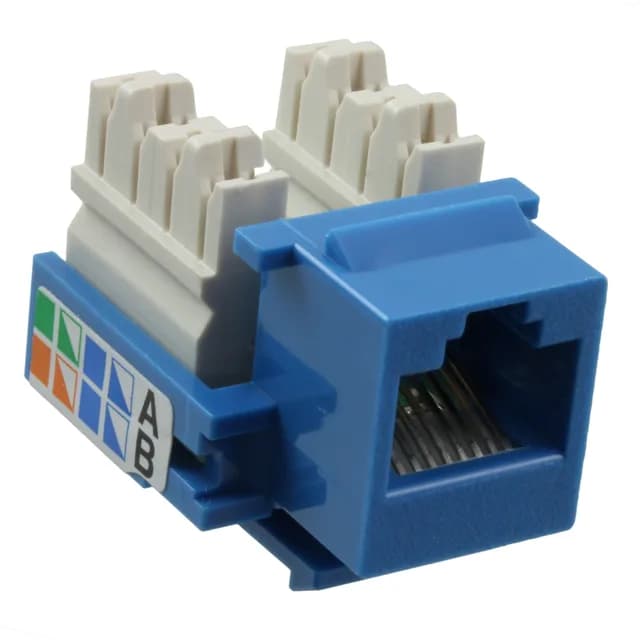

TE Connectivity SL 110Connect 406372-6, Style Modular, 8p8c (RJ45, Ethernet) jack, Cat5e rated, IDC Pressdown termination, Gold 50µin (1.27µm) contacts, Blue PC housing, -40°C ~ 70°C, Bulk.

$8.7900Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

406372-6 specifications
ParameterValue
SeriesSL 110Connect
Exterior type (Adapter end)Modular Jack 8p8c (RJ45, Ethernet)
Interior type (Adapter end)IDC, Pressdown, Punchdown Block
Operating temperature-40°C ~ 70°C
Exterior housing colorBlue
Exterior contact materialPhosphor Bronze
Exterior housing materialPolycarbonate (PC)
StyleModular
PackageBulk
RatingsCat5e
Exterior contact finishGold
Exterior contact finish thickness50µin (1.27µm)

Product details

The TE Connectivity 406372-6 is a SL 110Connect modular jack — an 8p8c (RJ45, Ethernet) keystone-style jack with IDC, pressdown, punchdown block termination on the rear. It's built for Cat5e rated channels, meaning it supports 100 MHz bandwidth and 1 GbE links in structured cabling. The blue polycarbonate (PC) housing and gold-plated phosphor bronze contacts (50µin / 1.27µm on the mating interface) give it the corrosion resistance and mating cycle life for repeated patching in a telecom closet or equipment room.

The 406372-6 is listed as Obsolete. If you need a guaranteed long-term supply, a Cat5e or Cat6 RJ45 jack from the active SL 110Connect or similar TE modular jack family should be evaluated for footprint and IDC compatibility; the 8p8c interface and punchdown termination are standard, but the specific housing keying and PCB footprint (if panel-mount) need a physical check against the original.

What the Cat5e Rating Means for the Fit

The Cat5e rating is the performance ceiling — 100 MHz, 1 GbE. That's sufficient for most enterprise LAN drops and industrial Ethernet (Profinet, EtherNet/IP) at 100 Mb or 1 Gb line rates. It is not rated for Cat6 (250 MHz) or Cat6a (500 MHz) channels, so if the cabling plant is spec'd for 10 GbE, this jack is the bottleneck. The 50µin gold on the RJ45 contacts is a good match for the 750+ mating cycles typical of a patch panel or wall plate; a lesser flash gold would wear through faster in a frequently-repatched environment.

Frequently asked questions

Is 406372-6 obsolete?

Yes, the TE Connectivity 406372-6 is listed as Obsolete.

What is a direct replacement for 406372-6?

No official direct replacement is listed by the manufacturer. Any replacement would need to match the 8p8c (RJ45) interface, Cat5e or higher performance, and IDC punchdown termination — and be verified for the same panel cutout or PCB footprint.

Where can I buy 406372-6?

The 406372-6 is obsolete, so it is sourced through independent distribution on the surplus market. Submit an RFQ for current availability and pricing — no stock is held on the shelf.
