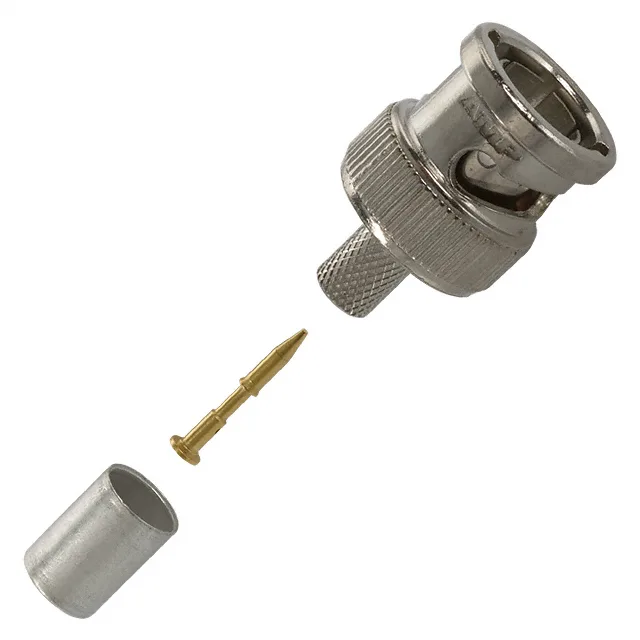

413589-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 413589-2 BNC Plug, 75 Ohm, 2 GHz, Crimp

MPN413589-2
Active

TE Connectivity BNC plug, male pin, 75 Ohms, 2 GHz, crimp termination, RG-59 cable group, bayonet lock, 500 mating cycles, includes connector + contact + ferrule.

$4.9500Ref. price · indicative, final on quote
413589-2 datasheet
StockIn Stock (28)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

413589-2 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line)
Connector typePlug, Male Pin
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Cable groupRG-59, 59A, 59B
Operating temperature-55°C ~ 85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolyethylene (PE)
Center contact materialBeryllium Copper
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75 Ohms
PackageBulk
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

BNC Plug for RG-59 — 75 Ohm, Crimp Termination, Bayonet Lock

The 413589-2: This is a 3-piece kit: the connector body, the centre contact, and the ferrule arrive together in one bag, so you order one line item per cable end instead of sourcing the parts separately.

Signal Path and Cable Fit

Rated at 75 Ohms impedance with a maximum operating frequency of 2 GHz. Insertion loss is 0.15 dB.

Termination — What the Crimp Setup Requires

The dielectric material is polyethylene, so the strip dimensions follow the standard RG-59 prep: expose the centre conductor for the pin, trim the braid, and slide the ferrule over the jacket before crimping.

Frequently asked questions

What is included in the 413589-2 package?

Each order of 413589-2 includes three pieces: one BNC connector body, one centre contact, and one crimp ferrule. You do not need to order the contact and ferrule separately.
