TE Connectivity AMP Connectors 413760-3 — RF / Coaxial Connectors

TE Connectivity 413760-3 BNC Jack, 75 Ohm, 2 GHz, Active

MPN413760-3
Active

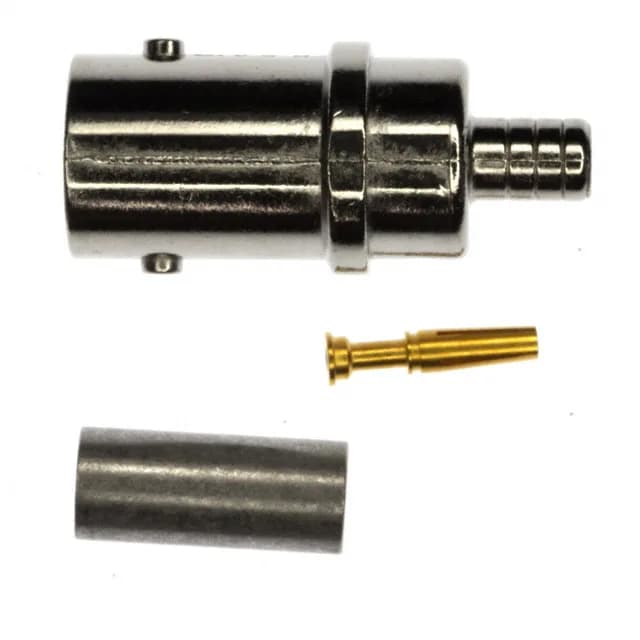

TE Connectivity BNC jack, 75 Ohm, 2 GHz, female socket, bayonet lock, crimp termination, nickel body, gold center contact, 500 mating cycles, -55°C to 85°C, includes connector + contact + ferrule.

$4.1972Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

413760-3 key specifications
ParameterValue
MountingFree Hanging (In-Line)
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Cable groupBelden 8218
Operating temperature-55°C~85°C
Body materialZinc
Housing colorSilver
Dielectric materialPolyethylene (PE)
Center contact materialBeryllium Copper
PackageBulk

All specifications

413760-3 additional specifications
ParameterValue
Includes3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Impedance75Ohm
Body finishNickel
Mating cycles500
Insertion loss0.15dB
Number of ports1
Shield terminationCrimp
Contact terminationCrimp
Center contact platingGold

Product details

The 413760-3: The 75 Ohm impedance and 2 GHz frequency ceiling place it in video surveillance, baseband video, and digital data distribution, not 50 Ohm RF test or telecom. The kit ships as three pieces: the connector body, a crimp contact, and a ferrule, so you don't have to source those separately.

At 75 Ohm, this jack matches the characteristic impedance of Belden 8218 coax. The 2 GHz maximum frequency and 0.15 dB insertion loss keep signal loss low through multiple connectors.

The 413760-3 is listed for Belden 8218 cable — a 75 Ohm precision video coax. The nickel-plated zinc body and polyethylene dielectric are standard for indoor-rated BNCs; the silver housing colour is the factory finish, not a plating option.

Frequently asked questions

What is the impedance and insertion loss of the 413760-3?

75 Ohm characteristic impedance, with 0.15 dB insertion loss at frequency. The maximum operating frequency is 2 GHz.
