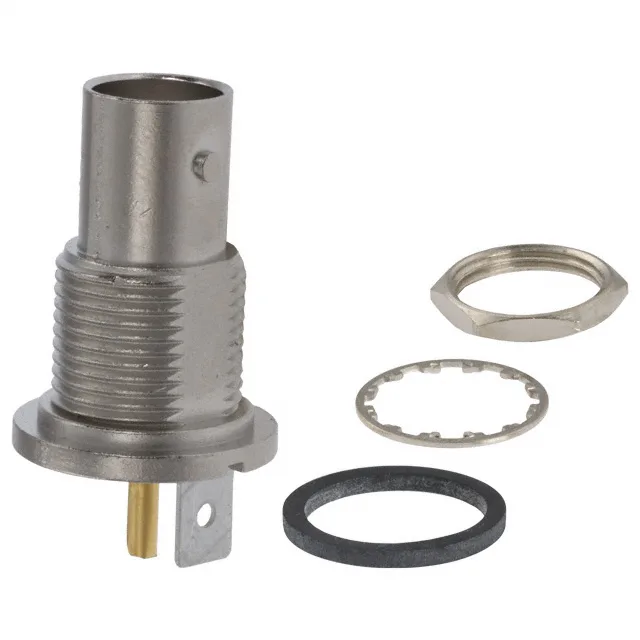

414217-1 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 414217-1 BNC Jack, 75 Ohm, 2 GHz

MPN414217-1
Active

TE Connectivity BNC jack, female socket, 75 Ohm, 2 GHz, 500 V, panel mount bulkhead, bayonet lock, solder cup, gold centre contact, includes gasket/lockwasher/nut, -65°C to 165°C.

$14.4400Ref. price · indicative, final on quote
414217-1 datasheet
StockIn Stock (27)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

414217-1 Technical Specifications
ParameterValue
Mounting typePanel Mount
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-65°C ~ 165°C
Body materialZinc
Housing colorSilver
Dielectric materialPolymethylpentene (PMP)
Center contact materialPhosphor Bronze
PackageBulk
Includes4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
Impedance75 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationSolder
Contact terminationSolder Cup
Center contact platingGold

Product details

75 Ohm BNC bulkhead jack for video and instrumentation

It is the female receptacle half that mates with standard male BNC plugs on RG6, RG59, and other 75 Ohm coax cables. The connector ships as a kit with four pieces: the jack body, a panel gasket, a lockwasher, and a hex nut — everything needed for a single bulkhead feed-through. Rated to 2 GHz maximum frequency with 75 Ohm characteristic impedance. The 500 V voltage rating covers the isolation needs of video distribution amplifiers and test equipment.

Panel fit and termination details

The centre conductor terminates via solder cup; the shield is soldered to the body. The bayonet lock mates with any standard male BNC plug. The keying is the BNC bayonet slot — no coding letter to check.

Frequently asked questions

What type of connector is 414217-1?

It is a 75 Ohm BNC jack, female socket, designed for panel-mount bulkhead installation. It mates with standard male BNC plugs on 75 Ohm coax cable.

What is included with the 414217-1 connector?

The kit includes four pieces: the BNC jack body, a panel gasket, a lockwasher, and a hex nut. All hardware needed for a single bulkhead mount is in the bag.
