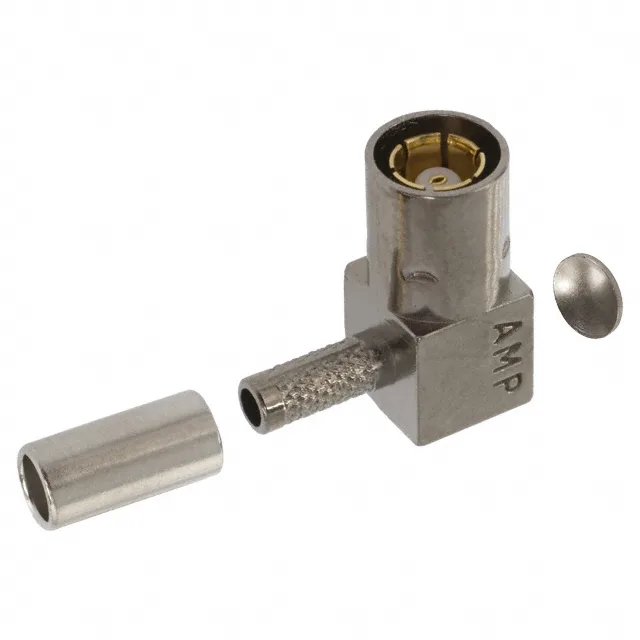

414363-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 414363-4 SMB Plug, 50 Ohm, 3 GHz

MPN414363-4
Active

TE Connectivity SMB plug, 414363-4, 50 Ohm, 3 GHz, RG-174/188/316, right-angle, snap-on, gold center contact, 500 cycles.

$6.8306Ref. price · indicative, final on quote
414363-4 datasheet
StockIn Stock (48)
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

414363-4 Technical Specifications
ParameterValue
Mounting typeFree Hanging (In-Line), Right Angle
Connector typePlug, Female Socket
Fastening typeSnap-On
Voltage rating335 V
Frequency - max3 GHz
Cable groupRG-174, 188, 316 (Double Braid)
Operating temperature-65°C ~ 165°C
Body materialZinc
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
Includes3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
Impedance50 Ohms
Body finishNickel
Mating cycles500
Insertion loss0.6dB
Number of ports1
Shield terminationCrimp
Contact terminationSolder
Center contact platingGold

Product details

50 Ohm SMB Plug for RG-174/188/316 — The Kit, Not Just the Connector

This plug is built for RG-174, RG-188, and RG-316 double-braid cable. The shield termination is crimp, and the center contact is solder. Insertion loss is spec'd at 0.6 dB across the band — that's the total through the mated pair, not just this plug alone. At 3 GHz, that's typical for a snap-on SMB interface; the loss is dominated by the transition from the cable to the connector rather than the connector body itself.

Sourcing — Active and Available to Quote

The 414363-4 is listed as Active on the lifecycle record — no end-of-life notice or replacement part number on file. For volume commitments or scheduled releases, the supply posture is confirmed at quote time.

Frequently asked questions

What cable groups are compatible with 414363-4?

The 414363-4 is designed for RG-174, RG-188, and RG-316 double-braid coaxial cable. These are the standard small-diameter 50 Ohm cables for applications up to 3 GHz.

What is included in the 414363-4 package?

The package includes three pieces: one SMB plug connector body, one end cap, and one ferrule. It's a termination kit, not just the connector shell.
