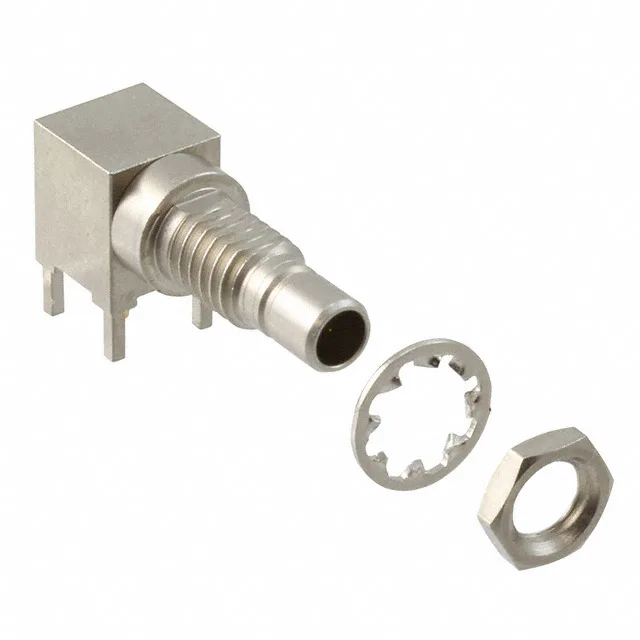

TE Connectivity SMB, Mini jack, male pin, 75 Ohms, 4 GHz max, panel mount right-angle, solder termination, gold center contact, nickel brass body, bulk package includes connector + lockwasher + nut.
| Parameter | Value |
|---|---|
| Mounting | Panel Mount, Through Hole, Right Angle |
| Connector type | Jack, Male Pin |
| Fastening type | Snap-On |
| Voltage rating | 335 V |
| Frequency - max | 4 GHz |
| Mounting feature | Bulkhead - Front Side Nut |
| Operating temperature | -65°C ~ 165°C |
| Body material | Brass |
| Housing color | Silver |
| Dielectric material | Polytetrafluoroethylene (PTFE) |
| Center contact material | Brass |
| Package | Bulk |
| Parameter | Value |
|---|---|
| Includes | 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut |
| Impedance | 75 Ohms |
| Body finish | Nickel |
| Number of ports | 1 |
| Shield termination | Solder |
| Contact termination | Solder |
| Center contact plating | Gold |
The 415377-1: Rated to 4 GHz, it covers analog video bands and lower-frequency digital links, but the bandwidth stops well short of the multi-GHz ceiling of a full-size SMB.
TE Connectivity lists the 415377-1 as obsolete.
The 415377-1 is obsolete and not held in regular distributor stock.
TE Connectivity has not published an official successor order code for the 415377-1. The replacement is a functionally equivalent 75 Ohm SMB mini jack with the same panel-mount, right-angle, solder-termination format — confirm the footprint and impedance match before substituting.
