TE Connectivity 415456-1 BNC Jack, 75 Ohm, 2 GHz, Obsolete

MPN415456-1
Obsolete

TE Connectivity BNC jack, 415456-1, 75 Ohm, 2 GHz max, 500 V, press-fit termination, panel mount, bulkhead, 1 port, bulk package.

$0.8400Ref. price · indicative, final on quote
415456-1 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

415456-1 Technical Specifications
ParameterValue
Mounting typePanel Mount, Through Hole
Connector typeJack, Female Socket
Fastening typeBayonet Lock
Voltage rating500 V
Frequency - max2 GHz
Mounting featureBulkhead - Front Side Nut
Operating temperature-55°C ~ 85°C
Body materialZinc Die Cast
Housing colorSilver
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBeryllium Copper
PackageBulk
FeaturesMounting Hardware

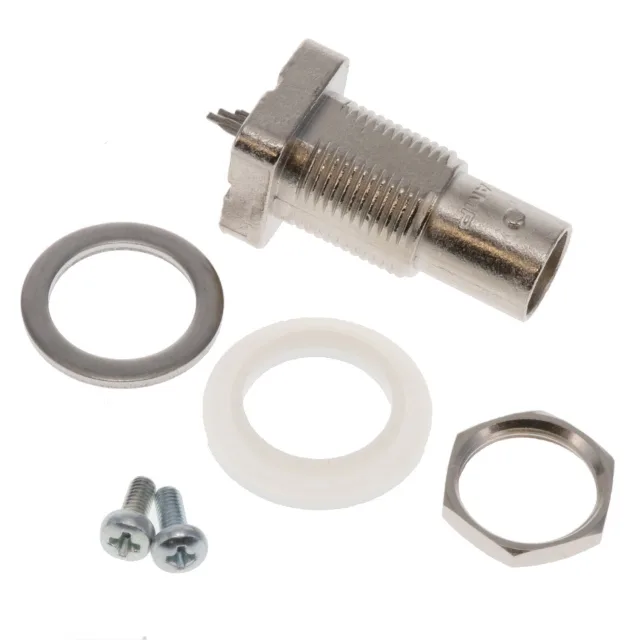

Includes7 pcs - 1 Connector, 1 Nut, 2 Screws, 3 Washers
Impedance75 Ohms
Body finishNickel
Mating cycles500
Number of ports1
Shield terminationPress-Fit
Contact terminationPress-Fit
Center contact platingGold

Product details

BNC Jack, 75 Ohm — Press-Fit Bulkhead Mount

It is a panel-mount, bulkhead-front-side-nut connector with press-fit shield and contact termination. It includes mounting hardware: one connector, one nut, two screws, and three washers.

The 75 Ohm impedance suits video and broadcast systems using 75 Ohm BNC cabling. The 2 GHz maximum frequency covers SDI video signals. The 500 mating cycles reflect the gold-plated beryllium copper contact durability. Press-fit termination avoids soldering but requires a precisely dimensioned PCB hole and insertion tool.

The jack mounts through a panel hole and is secured from the front side with the included nut. The press-fit shield termination grounds the shell to the PCB without solder — the press-fit pins engage plated through-holes. The center contact also terminates via press-fit. The PTFE dielectric provides stable impedance across temperature and humidity.

Frequently asked questions

What is the impedance of 415456-1?

The 415456-1 is a 75 Ohm BNC jack, designed for 75 Ohm systems such as video and broadcast.

Is 415456-1 compatible with standard 75 Ohm BNC cables?

Yes, the 415456-1 is a 75 Ohm BNC jack and is compatible with standard 75 Ohm BNC cables and connectors that use the BNC bayonet-lock interface.

What is the lead time for ordering 415456-1?

Lead time is confirmed at quote time when an RFQ is submitted. As an obsolete part, availability depends on remaining distributor inventory.
