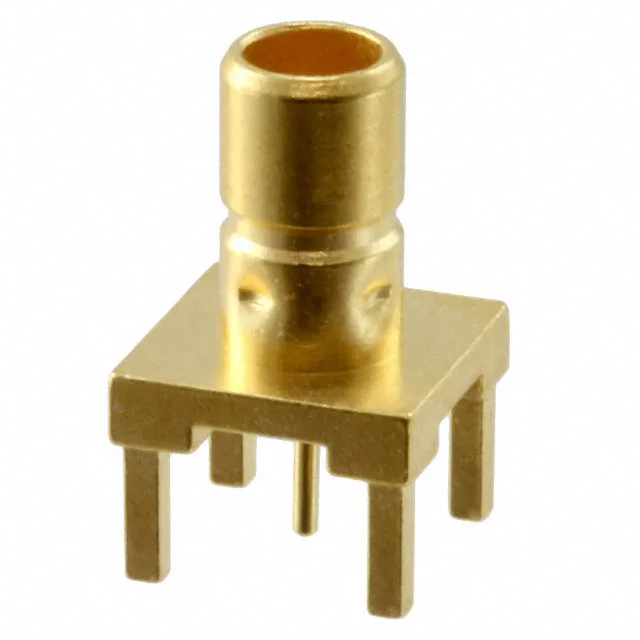

415504-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE 415504-3 SMB Jack, 75 Ohm, 3 GHz, Obsolete

MPN415504-3
Obsolete

TE Connectivity SMB mini jack, male pin, 75 Ohm, through-hole, snap-on, gold body, 1 port, 3 GHz max, 335 V, Bulk.

$1.9300Ref. price · indicative, final on quote
415504-3 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

415504-3 Technical Specifications
ParameterValue
Mounting typeThrough Hole
Connector typeJack, Male Pin
Fastening typeSnap-On
Voltage rating335 V
Frequency - max3 GHz
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Impedance75 Ohms
Body finishGold
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

The TE Connectivity 415504-3 is an SMB mini jack with a male pin centre contact, designed for 75 Ohm systems and rated to 3 GHz. The gold-plated brass body and snap-on fastening suit it for board-level RF interconnects where quick connect-disconnect is needed. Through-hole solder termination with a PTFE dielectric — the 75 Ohm impedance marks this for video distribution, broadcast, or test equipment rather than the 50 Ohm standard used in telecom.

No official replacement is listed in the manufacturer's records — for a BOM line requiring this exact order code, the channel is surplus or broker stock.

Rated for 335 V and a -65°C to 165°C operating range — the wide temperature envelope and PTFE dielectric make it usable in environmental test chambers or outdoor-adjacent RF paths despite the snap-on retention being less vibration-resistant than a threaded interface.

Frequently asked questions

What is the replacement for 415504-3?

No official replacement is listed in the manufacturer's records. Sourcing is through surplus or broker channels against an RFQ.

What is the impedance of 415504-3?

The 415504-3 is a 75 Ohm SMB jack, making it suited for video and broadcast applications rather than the 50 Ohm standard common in telecom.

Is 415504-3 a BNC connector?

No, the 415504-3 is an SMB mini connector, not a BNC. SMB uses a snap-on coupling and is smaller than a standard BNC.
