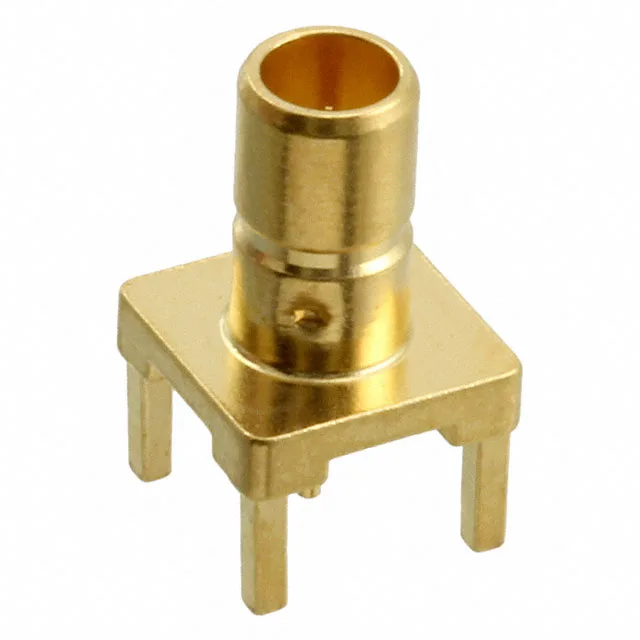

TE 415504-4 SMB Jack, 75 Ohm, 3 GHz, Through Hole, Gold

MPN415504-4
Obsolete

TE Connectivity SMB, Mini jack, male pin, 75 Ohms, 3 GHz, through-hole solder termination, gold body and center contact, snap-on coupling, 1 port, bulk.

$2.6000Ref. price · indicative, final on quote
415504-4 datasheet
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

415504-4 Technical Specifications
ParameterValue
Mounting typeThrough Hole
Connector typeJack, Male Pin
Fastening typeSnap-On
Voltage rating335 V
Frequency - max3 GHz
Operating temperature-65°C ~ 165°C
Body materialBrass
Housing colorGold
Dielectric materialPolytetrafluoroethylene (PTFE)
Center contact materialBrass
PackageBulk
Impedance75 Ohms
Body finishGold
Number of ports1
Shield terminationSolder
Contact terminationSolder
Center contact platingGold

Product details

75 Ohm SMB Jack for Video and Data RF Paths

This through-hole solder-terminated connector is rated to 3 GHz and 335 V, with a snap-on fastening type for quick blind-mate connections. The gold-plated brass body and center contact, combined with a PTFE dielectric, support repeated mating cycles in controlled-impedance signal paths.

Sourcing an Obsolete RF Connector

No official replacement order code is recorded for this specific 75 Ohm SMB variant. For BOM lines that call out this exact part, supply is limited to surplus and broker-channel inventory. If your design can accommodate a 50 Ohm SMB jack, a parametric search by interface and mounting style may yield an active alternative, but no pin-compatible drop-in replacement is documented.

This jack mates with any standard SMB plug having a female center contact and snap-on coupling. The through-hole solder termination requires the PCB to have plated through holes matching the center pin and shield legs. The PTFE dielectric maintains the 75 Ohm characteristic impedance through the connector body.

Frequently asked questions

Where can I buy 415504-4?

As an obsolete part, the 415504-4 is sourced through independent distribution against an RFQ. We confirm availability and pricing at quote time — no stock-holding claim is made.
