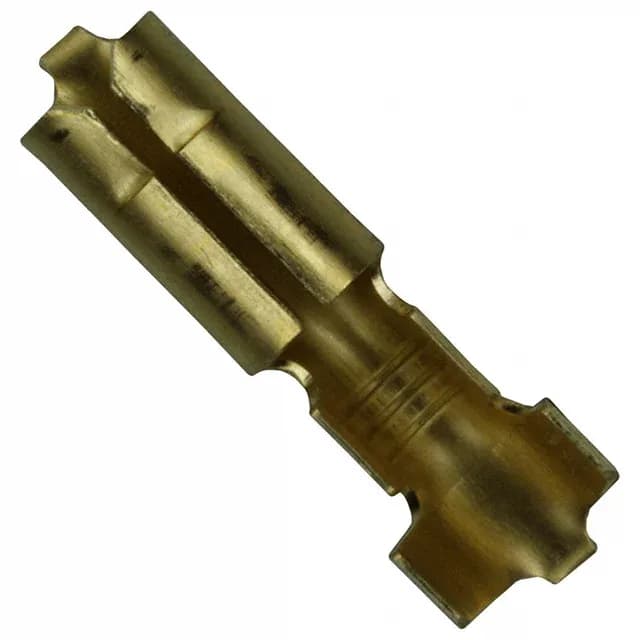

TE Shur-Plug receptacle, order code 42142-2, female socket, non-insulated, 14-18 AWG, brass contact, 0.344" (8.74 mm) barrel length, 0.156" (3.96 mm) barrel diameter, crimp termination, Tape & Reel.
| Parameter | Value |
|---|---|
| Series | Shur-Plug |
| Terminal type | Female, Receptacle (Socket) |
| Wire gauge | 14-18 AWG |
| Contact material | Brass |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Length - barrel | 0.344\" (8.74mm) |
| Length - overall | 0.695\" (17.65mm) |
| Diameter - barrel | 0.156\" (3.96mm) |
| Insulation diameter | 0.130\" ~ 0.175\" (3.30mm ~ 4.45mm) |
The 42142-2 shares the Shur-Plug series and 0.344" barrel length with the 42142-1, but the 42142-2 is the version supplied in Tape & Reel packaging for automated assembly. Compared to the 42700-1 (16-20 AWG, 0.180" barrel diameter) and the 42868-1 (10-14 AWG, 0.180" barrel diameter), the 42142-2 occupies the mid-range wire gauge with a narrower barrel suited to 14-18 AWG.
