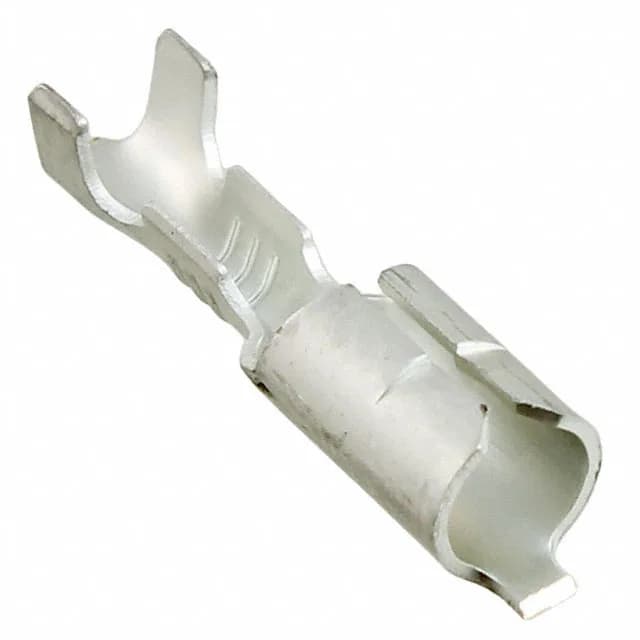

TE Connectivity AMP Connectors Shur-Plug receptacle terminal, order code 42581-2, female socket, 18-22 AWG, tin-plated brass, non-insulated, 0.250" barrel length, 0.156" barrel diameter, crimp termination.
| Parameter | Value |
|---|---|
| Series | Shur-Plug |
| Terminal type | Female, Receptacle (Socket) |
| Wire gauge | 18-22 AWG |
| Contact material | Brass |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Contact finish | Tin |
| Length - barrel | 0.250\" (6.35mm) |
| Length - overall | 0.690\" (17.53mm) |
| Diameter - barrel | 0.156\" (3.96mm) |
| Insulation diameter | 0.085\" ~ 0.125\" (2.16mm ~ 3.18mm) |
The 42581-2 is a non-insulated female receptacle terminal in TE Connectivity's Shur-Plug series, accepting 18-22 AWG wire. The tin-plated brass contact has a 0.250" barrel length and 0.156" barrel diameter, with an overall length of 0.690".
The 42581-2 accepts 18-22 AWG wire.
